Need Large Power Battery? Try Series and Parallel.

Need Large Power Battery? Try Series and Parallel.

Some customers’ vehicles or devices require large power battery to power them to work. However, super massive battery is not the perfect solution because of its size and weight. Since lithium ion batteries can be expand easily and quickly, we can wire batteries in series to Increase the voltage or in parallel to increase the capacity. You can also combine two ways together. Energy in watt hour (Wh) increases. All our lifepo4 battery 12v 24v 48v can be connect in series and parallel.

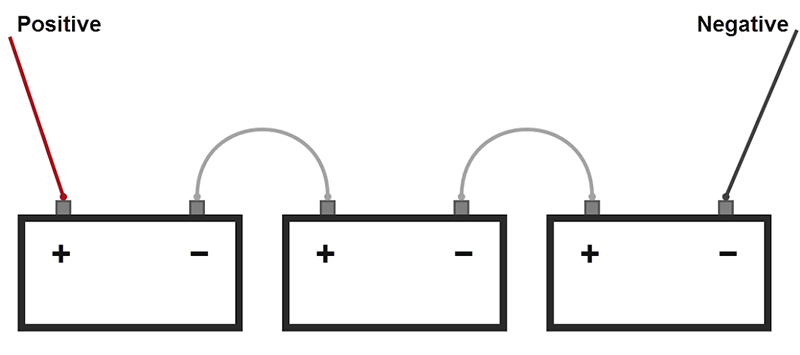

Series Battery Pack

To connect batteries in a series, use jumper wire to connect the negative terminal of the first battery to the positive terminal of the second battery. Use another set of cables to connect the open positive and negative terminals to your application.

large power battery supplier

Parallel Battery Pack

To join batteries in parallel, use a jumper wire to connect both the positive terminals, and another jumper wire to connect both the negative terminals of both batteries to each other. Negative to negative and positive to positive. You can connect your load to one of the batteries, and it will drain both equally. However, the preferred method for keeping the batteries equalized is to connect to the positive at one end of the battery pack, and the negative at the other end of the pack.

large power battery manufacturer

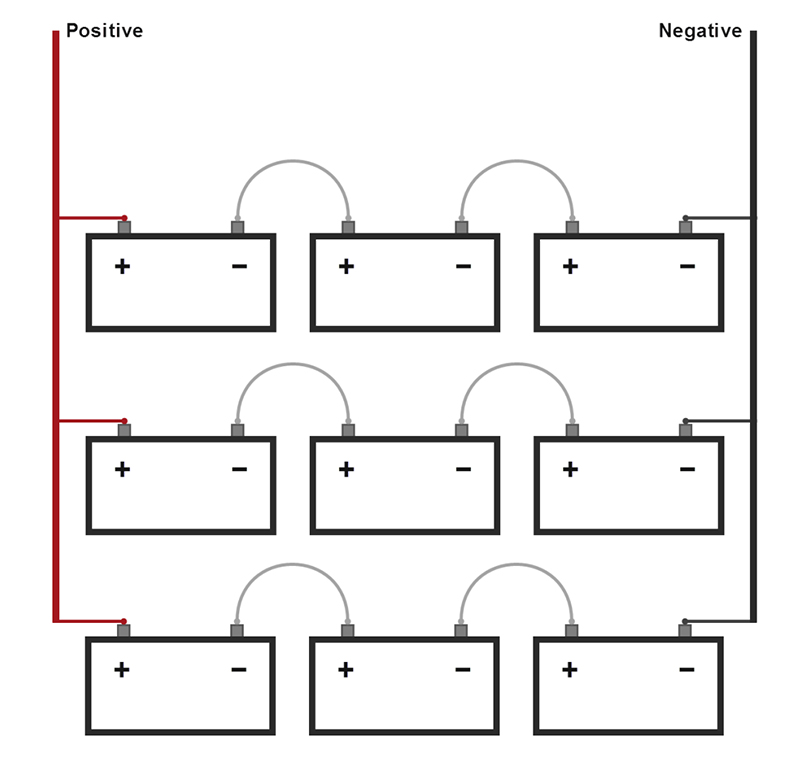

Series And Parallel Combination

Electricity flows through a parallel connection just the same as it does in a single battery. It can't tell the difference. Therefore, you can connect two parallel connections in a series. Only one cable is needed; a bridge between a positive terminal from one parallel bank to a negative terminal from the other parallel bank.It's alright if a terminal has more than one cable connected to it. It's necessary to successfully construct these kinds of battery banks.

large power lifepo4 lithium battery

In theory, you can connect as many batteries together as you want. But when you start to construct a tangled mess of batteries and cables, it can be very confusing, and confusion can be dangerous. Here are some notes:

  1. For long term use, it s recommended to connect SAME capacity batteries in parallel and series.
  2. Never mix different brands of batteries from the same or different manufacturers.
  3. Never mix old and new batteries in parallel
  4. Never mix batteries with different chemistries

The easiest way to construct a large power battery is to simply connect different models of the SAME battery. Always remember to be safe, and keep track of your connections.If it helps, make a diagram of your battery packs before attempting to construct them.
