37.5v
100A
250A
>3000times
3 years
T/T,L/C,Paypal, Western Union,Money Gram,Ali Express,Cash,etc.

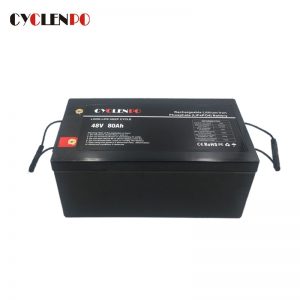

This 80ah 48v lithium iron phosphate battery is perfect for many marine/boat/yacht applications.It features lighter weight and stronger power.Built in BMS design also ensures the safety performance and service life of battery pack.It can directly replace traditional SLA batteries
|
Items
|
Standard
|
Remark
|
|
Nominal voltage
|
48V
|
|
|
Typical capacity
|
80Ah
|
At 1C discharge rate
|
|
Max continuous discharge current
|
100A
|
|
|
Over protection current
|
250A
|
|
|
Discharge cut-off voltage
|
37.5V
|
|
|
Charge voltage
|
54.75V
|
CC-CV |
|
Charge current
|
40A
|
|
|
Inner resistance
|
≤25mΩ
|
|
|
Operation temperature range |
Charge
|
0℃～+45℃
|
|
Discharge
|
-20℃～+60℃
|
|
|
Storage temperature range
|
0℃～40℃
|
Capacity 80%
|
|
Humidity
|
5%≤RH≤85%
|
|
|
Shell material
|
Lead acid shell
|
|
|
Weight
|
About 30±1Kg
|
|
|

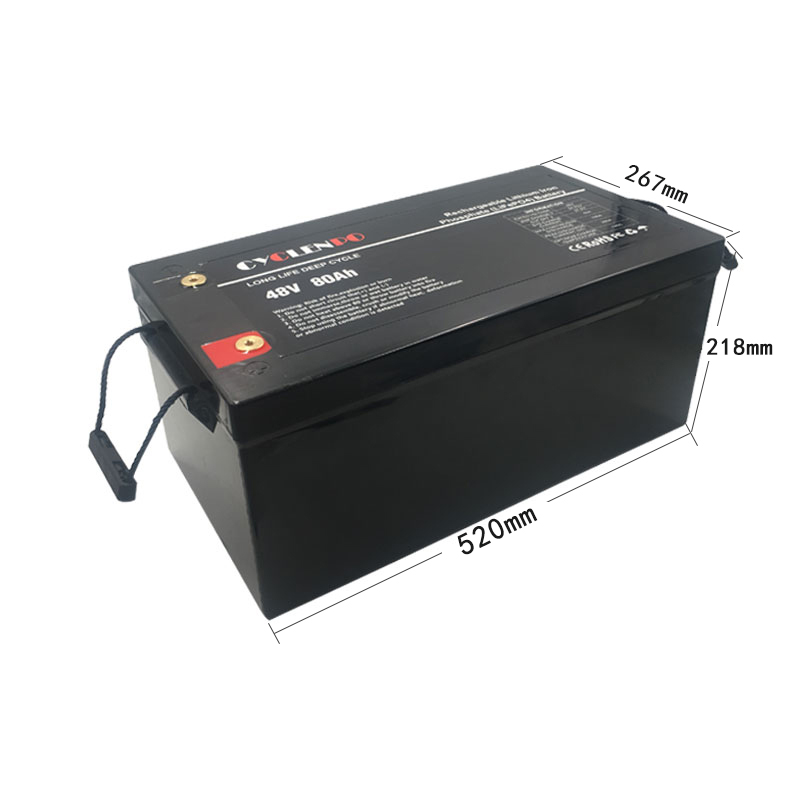

Size（L*W*H）
|
Size（L*W*H）
|
|
|
Protection function
|
Over charge protection、Over discharge protection、Over current protection、Short circuit protection、Temperature protection
|
|

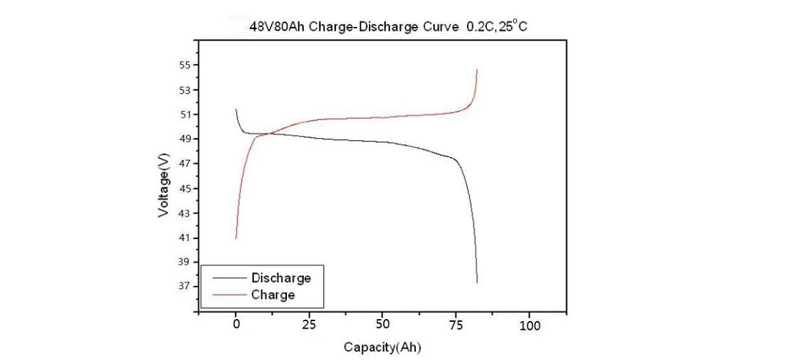

Characteristic Curve
Key Features of 48V 80Ah Lifepo4 Battery
BMS Built in Lithium Iron Phosphate 48V 80Ah
LiFePO4 Battery Modules Cyclen Supply
| Model | Rated Voltage | Nominal Capacity | Dimension | Weight |
| CY-LFP-1250 |
12.8V
|
50Ah | 195*165*175mm | 7kg |
| CY-LFP-12100 | 100Ah | 328*171*215mm | 12kg | |
| CY-LFP-12120 | 120Ah | 328*171*215mm | 15kg | |
| CY-LFP-12150 | 150Ah | 405*175*240mm | 20kg | |
| CY-LFP-12200 | 200Ah | 520*238*218mm | 22.5kg | |
| CY-LFP-12240 | 240Ah | 495*268*219mm | 27kg | |
| CY-LFP-12250 | 250Ah | 495*268*219mm | 28kg | |
| CY-LFP-12300 | 300Ah | 520*267*218 mm | 33kg | |
| CY-LFP-2450 |
25.6V
|
50Ah | 328*171*215mm | 13kg |
| CY-LFP-24100 | 100Ah | 520*267*218mm | 23kg | |
| CY-LFP-24120 | 120Ah | 520*267*218mm | 30kg | |
| CY-LFP-24150 | 150Ah | 495*160*295mm | 35kg | |
| CY-LFP-24200 | 200Ah | 410*370*200mm | 43kg | |
| CY-LFP-3650 | 38.4V |
50Ah | 483*170*240mm | 22kg |
| CY-LFP-36100 | 100Ah | 520*267*218 mm | 33kg |
The products we display don't represent the limitation of us.We can customize other battery specifications like:
and etc. If you are interested in our products, please don't hesitate to contact us at any time.We will work out
the perfect battery solution for you.
1.OEM&ODM manufacturer with various design and one-stop battery solution.
2.Reliable quality; Factory direct price; Complete production lines.
3.Timely and professional pre-sales service and after-sales service.
4.100% test before shipment; Solid package; Fast delivery and stable shipment.
Battery price depends on your quantity and specifications. Welcome to contact the Online Services.
If it's not our working time, please "Leave a Comment" below about your requirement.
We will offer you the best quote in 24 hours after we get the product specifications such as voltage
capacity application etc.
It depends on your order quantity.Normally 1-2days if we have sample in stock, 5-7days for newly
produced samples. 10-20 days for big order.
Our sales will help you choose the most cost-effective shipping methods.
1.Express shipping(3-10 working days), suitable for urgent time or small quantity.
2.Sea transportation(15-30 days), it suitable for mass production.
2. Air transport(4-7 days), from airport to airport.
We pack one battery in one carton box, and filled with EPE foam on the top and at the bottom.
For heavier battery, we adopt wooden case.And our shipping agent has full experience in safe
transportation. We will send you pictures of the packaging before battery shippment.
Usually 2-3 years warranty (Depends on different battery model) .And we offer online support by email,
skype, whatsapp or wechat etc. If you meet problems, we have our own engineers to provide technical
guide.
