60A
126A
(790±2)*(360±2)*(200±2)mm
>3000 times
About 56kg
3 years

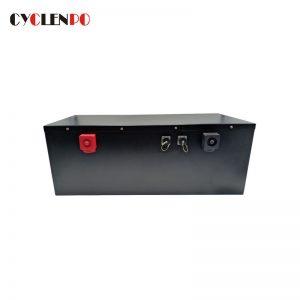

This lithium ev battery is installed by high quality LiFePO4 prismatic cell with high precision BMS protection system. The battery was used the scientific internal structure design, advanced battery production technology, with high specific energy and long life, safe and reliable, wide operating temperature range and other characteristics, is a green power supply equipment.
|
Item
|
General Parameter
|
Remark
|
|
Model
|
IFR 3.2v100ah
|
Single
|
|
Casing material for single cell
|
Nickel plated steel
|
|
|
Standard capacity（0.2C5A）
|
120Ah
|
|
|
Rated voltage
|
48V
|
Work voltage：3.20V
|
|
Standard Charge voltage
|
54.75V
|
(Single Ave. charge Voltage)
|
|
Cut-off voltage
|
37.5V
|
Single Ave. Discharge Voltage
|
|
Standard charge current
|
48A
|
0.4C
|
|
charging Time
|
About2.5h
|
|
|
Max Continuous discharge current
|
60A
|
0.5C
|
|
Peak discharge current
|
126A
|
1.05C 5seconds
|
|
Battery dimension
|
(790±2)*(360±2)*(200±2)mm
|
|
|
Total weight（Approx.)
|
About 56kg
|
|
|
Impedance（Max, at 1000Hz.）
|
≤ 8 0 mΩ
|
|
|
Working Temperature
|
Charge
|
0℃～45℃
|
|
discharge
|
-20℃～60℃
|
|
|
storage
|
0℃～45℃
|
*Battery capacity, dimension and shape can be customized as you require
Built in BMS protection:
1. over charge protection
2. over discharge protection
3. short circuit protection
4. cell balancing
5. over heat protection
1.OEM&ODM manufacturer with various design and one-stop battery solution.
2.Reliable quality; Factory direct price; Complete production lines.
3.Timely and professional pre-sales service and after-sales service.
4.100% test before shipment; Solid package; Fast delivery and stable shipment.
1.Where can I get the price of lithium ion battery for electric vehicles?
Welcome to contact the Online Services. If it's not our working time,
please click "Send Inquiry" above or "Leave a Comment" below,
We will offer you the best quote in 24 hours after we get the product specifications
such as voltage capacity application etc.
2.How can you guarantee your quality?
Normally we will send you a sample to confirm everything first.
We will make the big order exactly the same as you request.
3.What about the lead time for mass production?
It depends on your order quantity.Normally 1-2days if we have sample in stock,
5-7days for newly produced samples.10-20 day for big order.
4.What shipping method can I choose? How about the shipping time?
By Express (3-7 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
