12v 150ah Deep Cycle Battery, Factory Price and Customization Services

12v 150ah deep cycle battery
  • 12v 150ah deep cycle battery
  • 12v 150ah deep cycle battery
  • 12v 150ah deep cycle battery
  • 12v 150ah deep cycle battery
  • 12v 150ah deep cycle battery

12v 150ah LiFePO4 Battery Pack for Lead Acid Replacement Application


Product Specification:

  • Cycle life:

    ≥3000times

  • Warranty:

    3 years

  • Certificate:

    CE/RoHS/UN38.3/MSDS

  • Color:

    black or optional

  • Weight:

    about 18.5kg

  • Payment:

    Credit Card.Paypal.TT.Escrow.Western Union

  • size:

    405±1*175±1*240±1mm or customized

Inquiry Now

LifePO4 12v 150ah Deep Cycle Battery Pack for Lead Acid Replacement Application

NO. Item General Parameter Remark
1 Model 3.2Ⅴ75Ah (Single)
2 Casing material for single cell Nickel plated steel
3 Standard capacity(0.2C3A) 150Ah
4 Mininum Capacity(1C3A) 150Ah
5 Rated voltage 12.8V (Work voltage:3.20V)
6 Max.Charge voltage 14.6V (Single Ave. charge Voltage:3.65V)
7 Cut-off voltage 10V (Single Ave. Discharge Voltage:2.50V)
8 Standard charge current 30A 0.2C
9 charging Time 5h 0.2C
10 Max Continuous discharge current 320A 2.13C10seconds

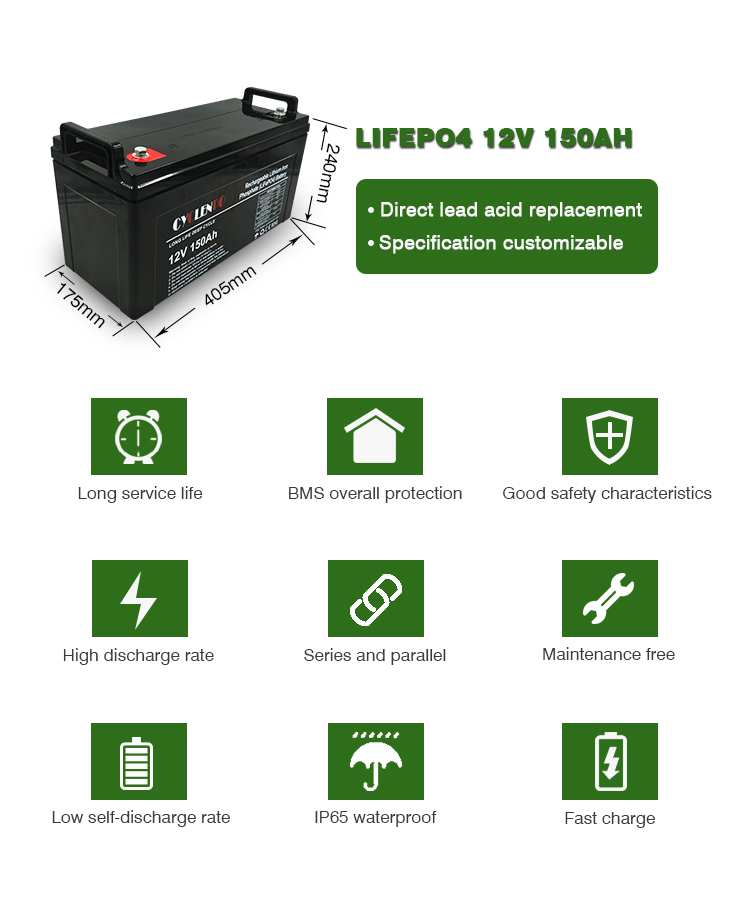

11 Battery dimension 405±1*175±1*240±1mm
12 Total weight(Approx.) About 18 kg
13 (Max, at 1000Hz.)

Impedance(Max, at 1000Hz.)

≤   5mΩ
14

Charge method (CC/CV)

Standard 0℃~45℃
discharge -20℃~45℃
storage -20℃~45℃



12v 150ah deep cycle battery

Features of our lifepo4 battery pack

  • More than 3000 times cycle life.
  • Bulit in BMS protection
  • High discharge rate.Max discharge current 175A,up to 320A.
  • Can be connected in series and parallel
  • Maintenance free
  • Have passed different tests.No explosion,no smoke,no leakage.
  • Bluetooth function can be added to read battery status
  • 3 years manufacturer's warranty.
BMS Overall Protection
  • Over Current and Over Voltage
  • Over Charge and Over Discharge
  • Thermal Protection
  • Over Load
Wide Range of Application

Widely used in RV, camping car, marine,boat,golf carts,sightseeing cars,solar backup,solar pv light, industrial equipment, and other deep cycle replacement.

12v 100ah lifepo4 manufacturer

Performance Characteristic



12v lifepo4 battery supplier

12v lifepo4 battery supplier

12v lifepo4 battery supplier12v lifepo4 battery supplier

Packing and Delivery

portable solar power station 12v

1.OEM&ODM manufacturer with various design and one-stop battery solution.

2.Reliable quality; Factory direct price; Complete production lines.

3.Timely and professional pre-sales service and after-sales service.

4.100% test before shipment; Solid package; Fast delivery and stable shipment.

 →Learn More About US

portable solar power station 12v

portable solar power station 12v

1.Where can I get the price of 12v 150ah deep cycle battery?

Welcome to contact the Online Services.  If it's not our working time,

please click "Send Inquiry" above or "Leave a Comment" below,

We will offer you the best quote in 24 hours after we get the product specifications

such as voltage capacity application etc.

2.How can you guarantee your quality?

Normally we will send you a sample to confirm everything first.

We will make the big order exactly the same as you request.

3.What about the lead time for mass production?

It depends on your order quantity.Normally 1-2days if we have sample in stock,

5-7days for newly produced samples.10-20 day for big order.

4.What shipping method can I choose? How about the shipping time?

By Express (3-7 working days), suitable for urgent time or small quantity.

By Sea (15-30 days), it suitable for mass production.

By Air (4-7 days), from airport to airport.
