12v 150ah Deep Cycle Battery, Factory Price and Customization Services

12v 150ah deep cycle battery
  • 12v 150ah deep cycle battery
  • 12v 150ah deep cycle battery
  • 12v 150ah deep cycle battery
  • 12v 150ah deep cycle battery
  • 12v 150ah deep cycle battery

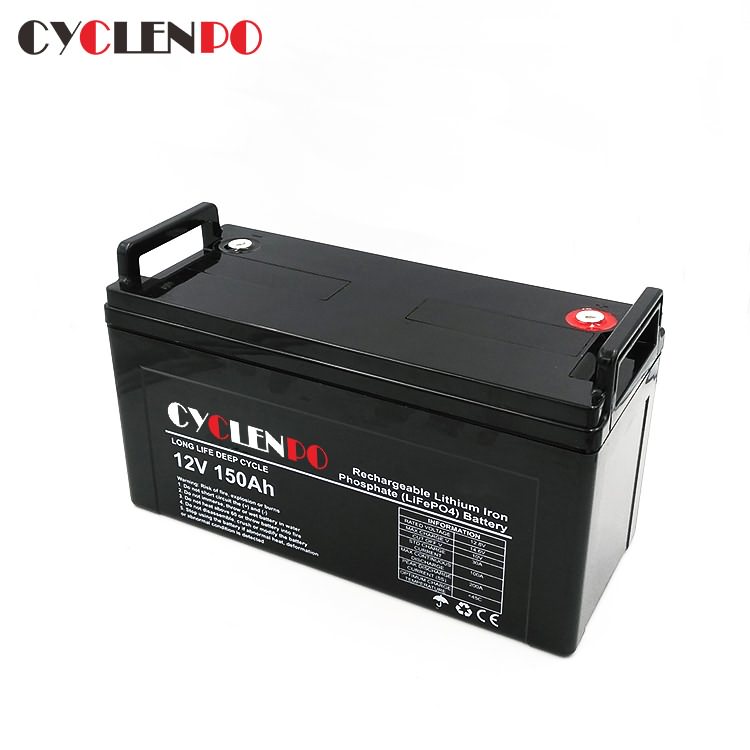

12v 150ah LiFePO4 Battery Pack for Lead Acid Replacement Application


Product Specification:

  • Cycle Life:

    ≥3000times

  • Weight:

    About 20kg

  • Dimension :

    405±1*175±1*240±1mm

  • Warranty:

    3 years

  • Certificate:

    CE/RoHS/UN38.3/MSDS

  • Payment:

    Credit Card.Paypal.TT.Escrow.Western Union

Inquiry Now

LifePO4 12v 150ah Deep Cycle Battery Pack for Lead Acid Replacement Application

NO. Item General Parameter Remark
1 Model 3.2Ⅴ75Ah (Single)
2 Casing material for single cell Nickel plated steel
3 Standard capacity(0.2C3A) 150Ah
4 Mininum Capacity(1C3A) 150Ah
5 Rated voltage 12.8V (Work voltage:3.20V)
6 Max.Charge voltage 14.6V (Single Ave. charge Voltage:3.65V)
7 Cut-off voltage 10V (Single Ave. Discharge Voltage:2.50V)
8 Standard charge current 30A 0.2C
9 charging Time 5h 0.2C
10 Max Continuous discharge current 320A 2.13C10seconds
11 Battery dimension 405±1*175±1*240±1mm
12 Total weight(Approx.) About 20kg
13 (Max, at 1000Hz.)

Impedance(Max, at 1000Hz.)

≤   5mΩ
14

Charge method (CC/CV)

Standard 0℃~45℃
discharge -20℃~45℃
storage -20℃~45℃

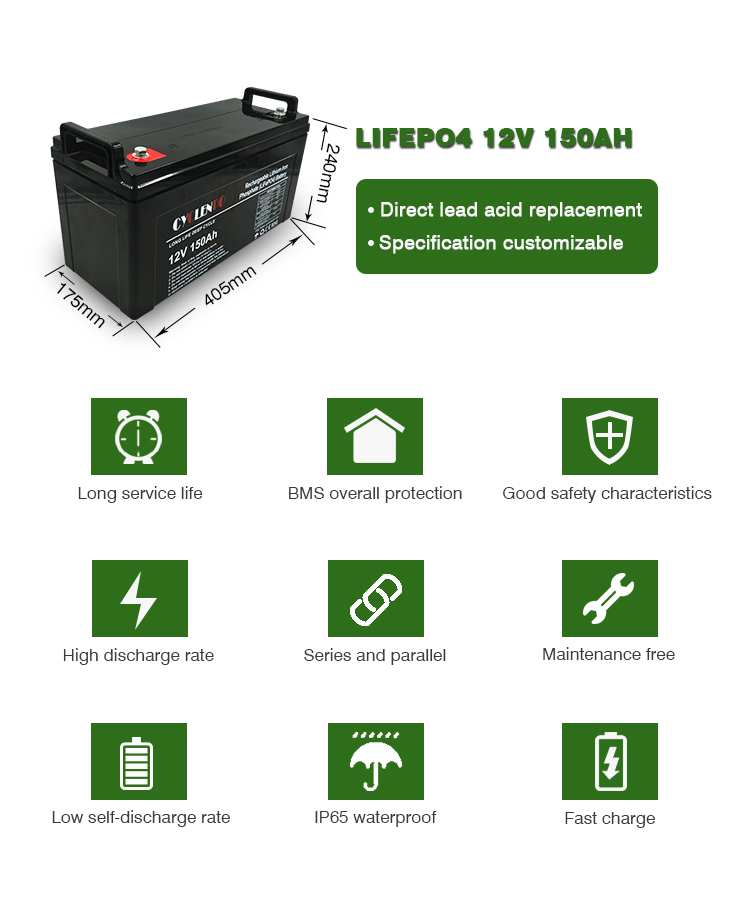

Key Features of 12V 150Ah Lifepo4 Battery

  • Longer service life. More than 3000 cycle times..About 7-8 years lifespan.
  • Plug in replacement of lead acid battery
  • High discharge rate capability.Max continous discharge 175A. Peak discharge 320A
  • Support parallel and series to make higher voltage and capacity.
  • Fast charge.Can be safely rapidly recharged in 1-3 hours
  • Lighter weight. About 1/3 the weight of lead acid.
  • Maintenance free
  • Low self discharge rate. Lower than 3% monthly
  • Deep cycle. Can be 100% deep discharged.
  • IP65 waterproof rating.Suitable for marine use
  • Safest performance. Lifepo4 is the safest lithium material. No fire or explosion

BMS Built in Lifepo4 lithium 12V 150Ah

  • Over Charge Protection
  • Over Discharge Protection
  • Over Current Protection
  • Short Circuit Protection
  • Thermal Protection
Wide Range of Application of Lifepo4 Modules
  • RV/Camping Car/Caravan
  • Marine/Yacht/Boat
  • Golfcarts/Sightseeing cars
  • Off grid energy storage
  • UPS/Energy backup
  • Industrial equipment
  • Other deep cycle application

LiFePO4 Battery Modules Cyclen Supply

Model Rated Voltage Nominal Capacity Dimension Weight
CY-LFP-1250

12.8V



50Ah 195*165*175mm 7kg
CY-LFP-12100 100Ah 328*171*215mm 12kg
CY-LFP-12120 120Ah 328*171*215mm 15kg
CY-LFP-12150 150Ah 405*175*240mm 20kg
CY-LFP-12200 200Ah 520*238*218mm 22.5kg
CY-LFP-12240 240Ah 495*268*219mm 27kg
CY-LFP-12250 250Ah 495*268*219mm 28kg
CY-LFP-12300 300Ah 520*267*218 mm 33kg
CY-LFP-2450

25.6V



50Ah 328*171*215mm 13kg
CY-LFP-24100 100Ah 520*267*218mm 23kg
CY-LFP-24120 120Ah 520*267*218mm 30kg
CY-LFP-24150 150Ah 495*160*295mm 35kg
CY-LFP-24200 200Ah 410*370*200mm 43kg
CY-LFP-3650 38.4V

50Ah 483*170*240mm 22kg
CY-LFP-36100 100Ah 520*267*218 mm  33kg



The products we display don't represent the limitation of us.We can customize other battery specifications like:

  • Voltage
  • Capacity
  • Charge current
  • Discharge current
  • Battery shape
  • Temperature condition

and etc. If you are interested in our products, please don't hesitate to contact us at any time.We will work out

the perfect battery solution for you.

portable solar power station 12v

     Cyclen is a chinese lifepo4 battery manufacturer specialized on producing high performance lithium lifepo4

     battery packs and custom battery solutions.We have exported our battery packs worldwide for years.If you

     are looking for lead acid/gel/agm replacement battery, we can be your reliable supplier.

  • OEM&ODM manufacturer with various design and one-stop battery solution.
  • Reliable quality; Factory direct price; Complete production lines.
  • Timely and professional pre-sales service and after-sales service. 100% test before shipment;
  • Solid package; Fast delivery and stable shipment.
portable solar power station 12v
  • Where can I get the price of the lifepo4 12v 150ah deep cycle battery?

         Battery price depends on your quantity and specifications. Welcome to contact the Online Services.

         If it's not our working time, please "Leave a Comment" below about your requirement.

         We will offer you the best quote in 24 hours after we get the product specifications  such as voltage

         capacity application etc.

  • What about the lead time for mass production?

         It depends on your order quantity.Normally 1-2days if we have sample in stock, 5-7days for newly

         produced samples. 10-20 days for big order.

  • What shipping method can I choose? How about the shipping time?

        Our sales will help you choose the most cost-effective shipping methods.

        By Express (3-10 working days), suitable for urgent time or small quantity.

        By Sea (15-30 days), it suitable for mass production.

        By Air (4-7 days), from airport to airport.

  • What is the package? Is that safe?

        We pack one battery in one carton box, and filled with EPE foam on the top and at the bottom.

        For heavier battery, we adopt wooden case.And our shipping agent has full experience in safe

        transportation. We will send you pictures of the packaging before battery shippment.

  • What's the warranty? How can I get support after purchasing batteries?

        Usually 2-3 years warranty (Depends on different battery model) .And we offer online support by email,

        skype, whatsapp or wechat etc. If you meet problems, we have our own engineers to provide technical

        guide.
