Prismatic 3.2V 100Ah
1000A
800CCA
311±1*175±1*189±1mm
10.3kg
CE MSDS ROHS FCC

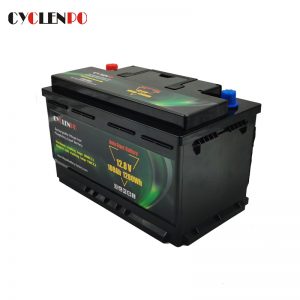

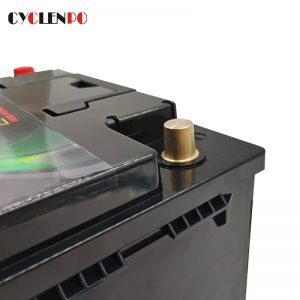

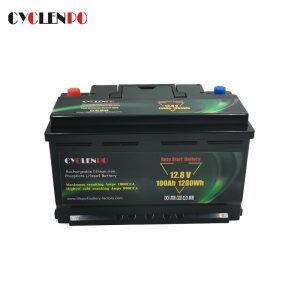

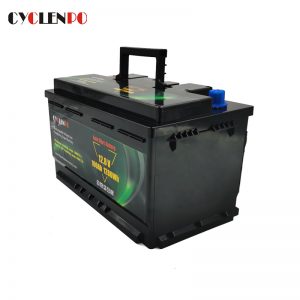

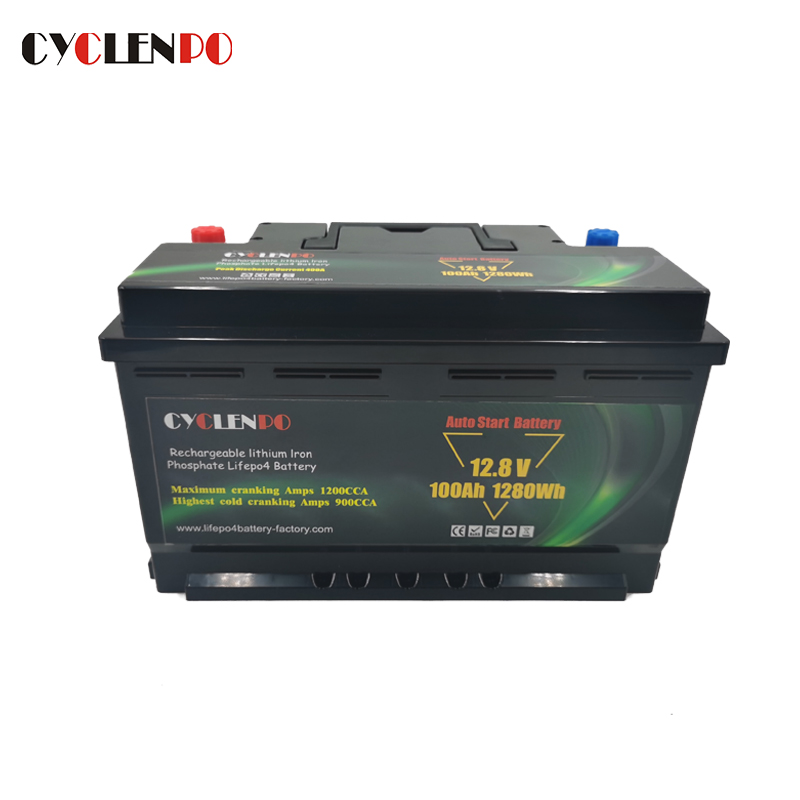

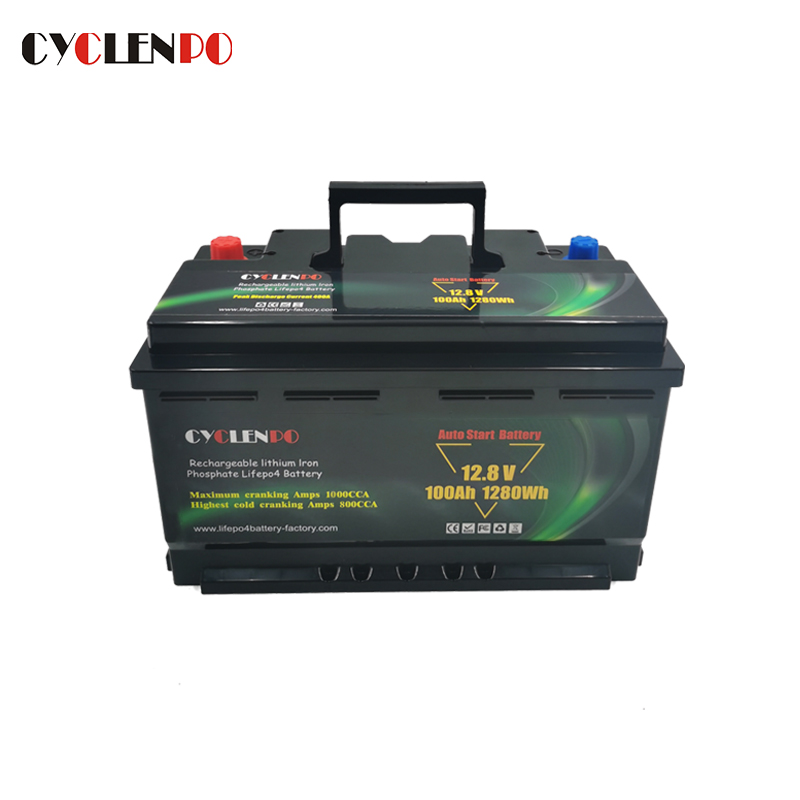

Built With BMS 1000 Cranking Amps 12V 100Ah LiFePO4 Starter Battery
LiFePO4 starter battery series are based on lithium iron phosphate technology. Compared with lead acid starter batteries, they have very high discharge rate with a smaller capacity and lighter weight.They also feature BMS inside for the safest and long-life performance. They have lower self-discharge rate so they can still provide enough cranking power when sitting for months.
|
Item
|
General Parameter
|
Remark
|
|
Model
|
IFR 3.2V 100AH
|
Single
|
|
Casing material for single cell
|
Prismatic cells
|
1S4P
|
|
Standard capacity（0.2C 5 A）
|
100Ah
|
|
|
Rated voltage
|
12.8V
|
Work voltage：3.20V
|
|
Max.Charge voltage
|
14.4V
|
Single Ave. charge Voltage 3.6V
|
|
Cut-off voltage
|
10.0V
|
Single Ave. Discharge Voltage 2.5V
|
|
Standard charge current
|
20A
|
0.2C (can be adjusted )
|
|
charging Time
|
About 5 hrs
|
|
|
Max Continuous discharge current
|
100A
|
1.0C
|
|
Peak discharge current
|
1000A
|
10.0C 2seconds
|
|
Battery dimension
|
311±1*175±1*189±1mm
|
Max dimension
|
|
Total weight（Approx.)
|
About 10.3kg
|
Each box weight, 1pcs / box
|
|
Impedance（Max, at 1000Hz.）
|
≤ 8mΩ
|
Between the positive and negative
|
|
High cold cranking Amps
|
800 CCA
|
-20℃
|
|
Battery case material
|
ABS
|
|
|
Charge method (CC/CV)
|
Standard
|
-20℃～55℃
|
|
discharge
|
-20℃～65℃
|
|
|
storage
|
-40℃～55℃
|
Higher safety performance. BMS provide over current, over voltage, over temperature, short circuit protection. No fire hazard.
LiFePO4 Prismatic Cells
About 1/3 lighter in weight compared with lead acid batteries. More than 3000 cycle life and start your car more times repeatable
Peak 1000CCA Starting Power
Quick start-off ability.Capable of high current (we offer 300CCA-1000CCA ) to meet different vehicles' need.
After testing, within 5 minutes after starting, the battery charging current is close to 0A, and the idling fuel consumption of the car is reduced by more than 10%.
1.Where can I get the price of the 12v 100ah lifepo4 starter battery?
Welcome to contact the Online Services. If it's not our working time,
please click "Send Inquiry" above or "Leave a Comment" below,
We will offer you the best quote in 12 hours after we get the product specifications
such as voltage capacity application etc.
2.How can you guarantee your quality?
Normally we will send you a sample to confirm everything first.
We will make the big order exactly the same as you request.
3.What about the lead time for mass production?
It depends on your order quantity.Normally 1-2days if we have sample in stock,
5-7days for newly produced samples.10-20 day for big order.
4.What shipping method can I choose? How about the shipping time?
By Express (3-7 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
