Energy storage and backup
2.5kwh-12kwh
600mm*600mm*1140mm
≥6000times
RS485 , RS232
Credit Card.Paypal.TT.Escrow.Western Union

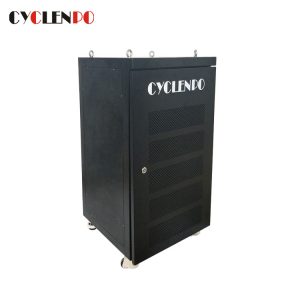

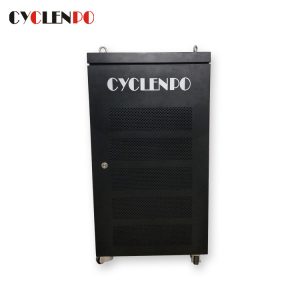

This battery storage cabinet is a lifepo4 battery system with battery management system,which is used with an external inverter. It can be integrated into stand-alone grids and connected to the utility grid. They can be flexibly combined with any sort of energy generator, including solar, wind power and diesel generators.Proving power from 2.5kwh to 12.5kwh.Cyclen offer a wide range of energy storage products.
|
Specification and Type
|
Storage Battery Box
|
|

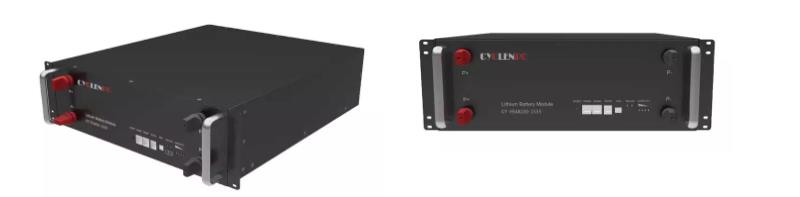

Battery module
|
2.5kWh,28kg
|
|
Usable Energy
|
12.5kWh
|
|
Net Weight
|
76-192kg
|
|
Max Output Power
|
2.5kwh-12.5kwh
|
|
Peak Output Power
|
5kwh-25kwh, 30S
|
|
Nominal Voltage
|
51.2V
|
|
Operating Voltage Range
|
43.2~56.4 V
|
|
Communication
|
RS485 , RS232
|
|

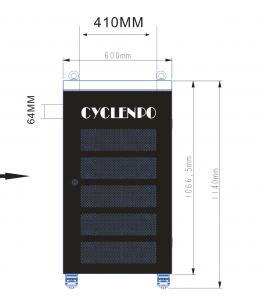

Dimensions (L/H/W)
|
600 x 600 x 1140 mm
|
|
Protection Level
|
IP20
|
|
Warranty
|
3 years
|
|
Operating temperature
|
-10 °C to +50°C
|
|
Certification & Safety Standard
|
TUV (IEC62619) / CE / RCM / UN38.3
|
|
Scalability
|
Max. 32 B-Plus L 2.56 in parallel / 81.92 kWh
|
|
Application
|
ON Grid (Self consumption / ON Grid + Backup / Backup) and Off Grid
|
Features of Lithium Ion Battery Storage Cabinet
1. Automotive Battery
-The safest, optimized standard to residential and commercial battery solutions
2. Modular design
-All Battery-Box systems feature a modular design to provide maximum flexibility.
3. Long life span
-Reliability and long life span is verified by multiple aging tests
4. Optimized Performance
-Optimized performance and efficiency
5. High Power

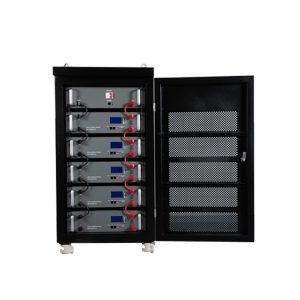

-Up to 5 modules can fit into one cabinet, and up to 8 cabinets can be put into parallel connection.
6. 3 Years Warranty
-3 years manufacturer’s defect warranty
Application of Storage Battery Cabinet
1. Emergency power.
-In the case of a power failure.This storage system can supply power in a split second.
2. Increase self consumption.
-Increase the utilization of the power.
3. Peak load shifting.
-Cut your consumption peak and save money.
4. Off grid power supply.
-Cut your consumption peak and save money by reducing loads.
|
LOGO
|

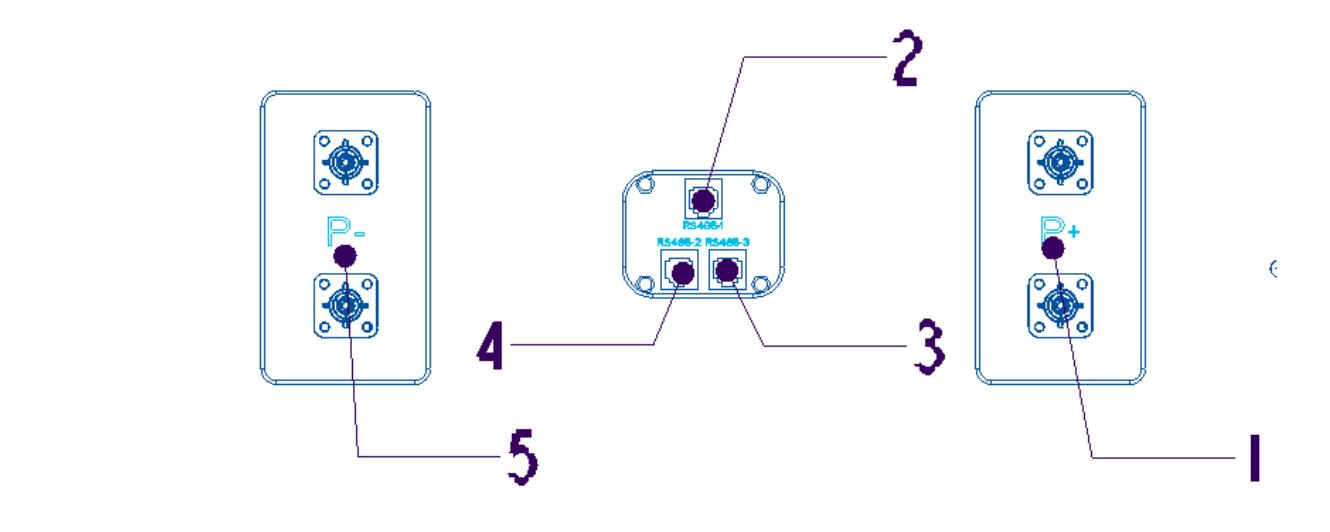

Instructions
|
|
1. P+
|
Charge and discharge positive pole
|
|
2. RS485‐1
|
Inverter communicating junctions
|
|
3. RS485‐2
|
Parallel operation for communicating use
|
|
4. RS485‐3
|
Parallel operation for communicating use
|
|
5. P‐
|
Charge and discharge negative pole
|
1.OEM&ODM manufacturer with various design and one-stop battery solution.
2.Reliable quality; Factory direct price; Complete production lines.
3.Timely and professional pre-sales service and after-sales service.
4.100% test before shipment; Solid package; Fast delivery and stable shipment.
1.Where can I get the price of the battery storage cabinet?
Welcome to contact the Online Services. If it's not our working time,
please click "Send Inquiry" above or "Leave a Comment" below,
We will offer you the best quote in 24 hours after we get the product specifications
such as voltage capacity application etc.
2.How can you guarantee your quality?
Normally we will send you a sample to confirm everything first.
We will make the big order exactly the same as you request.
3.What about the lead time for mass production?
It depends on your order quantity.Normally 1-2days if we have sample in stock,
5-7days for newly produced samples.10-20 day for big order.
4.What shipping method can I choose? How about the shipping time?
By Express (3-7 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
