Lifepo4 battery 12v 100ah,lithium ion battery 12v 100ah,high quality products,safe payments

Performance parameter table of Lifepo4 battery 12v 100ah

Lifepo4 battery 12v 100ah environmental protection material is non-polluting, battery energy density is large, the same capacity and  volume is the same in quality. The Lifepo4 battery 12v 100ah has no memory, and the cycle life is longer. It is about 2,000 times and can be used for 7~8 years, which is about 5 times of lead-acid batteries. The Lifepo4 battery 12v 100ah is more resistant to low temperature and is basically immune to low temperatures. The Lifepo4 battery 12v 100ah has a wide operating temperature range and is suitable for a harsh working environment. The Lifepo4 battery 12v 100ah has better comprehensive performance and is more suitable for popularization and application. Next, let's take a look at the specific parameters of Lifepo4 battery 12v 100ah for your reference.

Performance parameter table of Lifepo4 battery 12v 100ah:

NO. Item General Parameter Remark
1 Model IFR 32650-5Ah Single
2 Casing material for single cell Nickel plated steel
3 Standard capacity(0.2C5A) 100Ah
5 Rated voltage 12.8V  (Work voltage:3.20V)
6 Max.Charge voltage 14.6V  (Single Ave. charge Voltage)
7 Cut-off voltage 10V  (Single Ave. Discharge Voltage)
8 Standard charge current 40A 0.4C
9 charging Time About 5h
10 Max Continuous discharge current 40A 0.4C
11 Max discharge curren 100A 1C10seconds
12 Battery dimension 328±1*171±1*215±1mm or customized
13 Total weight About 10kg
14 Impedance(Max, at 1000Hz.) ≤   30mΩ
15 Charge method (CC/CV) Standard 0℃~45℃
discharge -20℃~45℃
storage -20℃~45℃

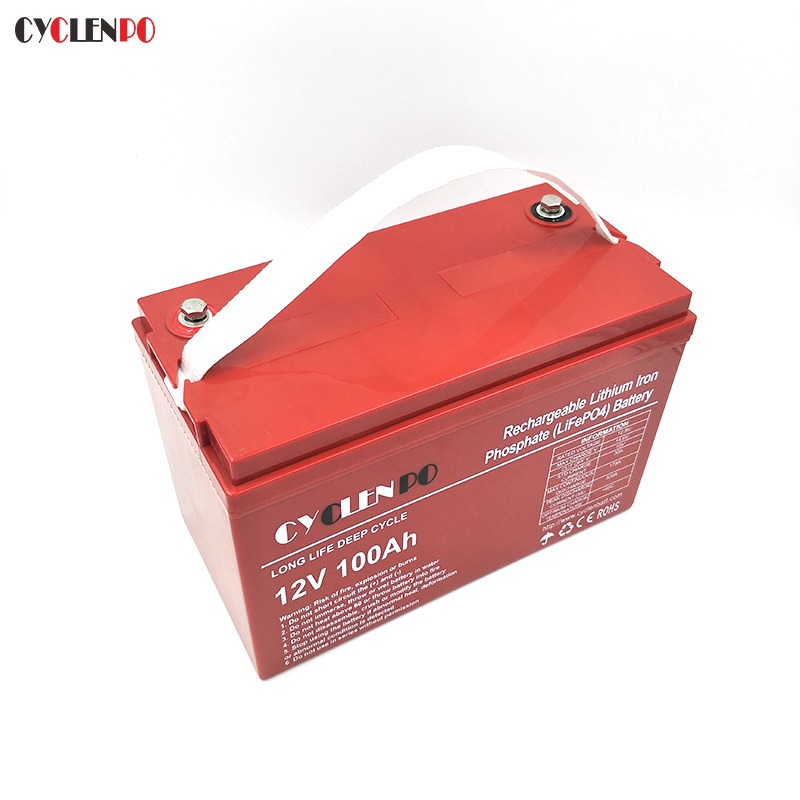

Lifepo4 battery 12v 100ah

performance

No. Project Standard Testing method
1 Discharge performance in normal temperature Discharge capacity /standard capacity×100%

(A)0.2C3A ≥100%

(B)1C3A ≥90%



Charge with 0.2C5A standard charge in the condition of temperature 25℃±5℃,relative humidity 45%~80% (if there is no especial statement,the charging way is same as this), rest for 10min,separated discharge with 0.2C5A、1C5A to cut-off voltage 10V,cycles for three times,One cycle capacity arrive standard, that’s to say it is qualified.(The below as the same);
2 Charging keep ability in normal temperature Rest capacity≥standard capacity *90%



After standard charging,store at 25℃±5℃ for a month, and then discharge to cut-off voltage10V by 0.2C5A. Then measure the capacity of cell.
3 Cycle life Capacity≥ Standard capacity *80% After 0.2 C5A standard charged ,discharge with 0.2 C5A to 10V.rest for10min,cycles for 1600 times.
4 Storage performance Capacity can be kept ≥80% Storage for 12months. After standard charged,let it rest for 12 months as a open circuit, discharging it until 10 V by 0.2C5A, and then measure the leftover capacity. Measure its recovery capacity by 0.2 C5A /0.2C5A . Undertake 3 cycles, it passes when one cycle meets the standard.
Packaging process Insulation bracket + epoxy board + PVC + plastic shell
Characteristics Long cycle life, light battery weight, high safety performance, green and environmental protection
Applications Solar street light, integrated solar street light, LED outdoor light, landscape light, garden light, high pole light, light box, LED billboard, wireless monitoring equipment, mining, medical equipment, machinery, instrumentation, communication equipment, communication base station Wait;

Lifepo4 battery 12v 100ah

Cyclen Lifepo4 battery 12v 100ah  quality is stable, warranty for up to two years, is the best choice for your choice of lithium iron phosphate battery .
