12v 20ah lithium ion battery, 12v 20ah lithium battery, lifepo4 12v 20ah,12v 20ah battery

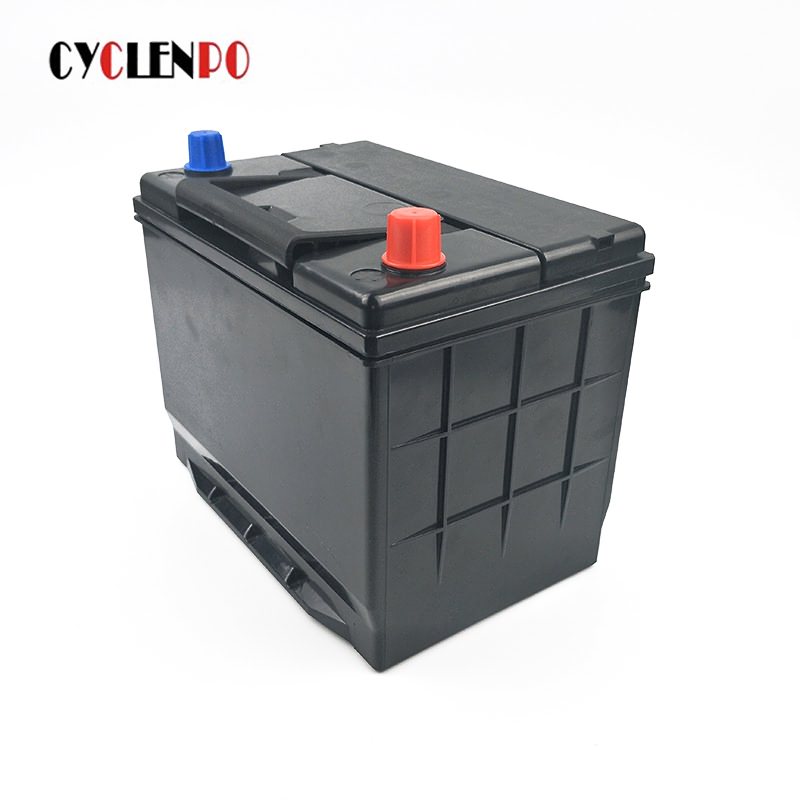

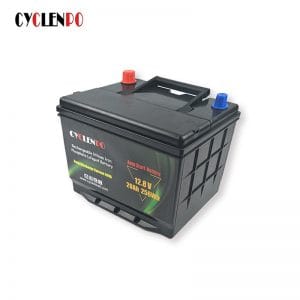

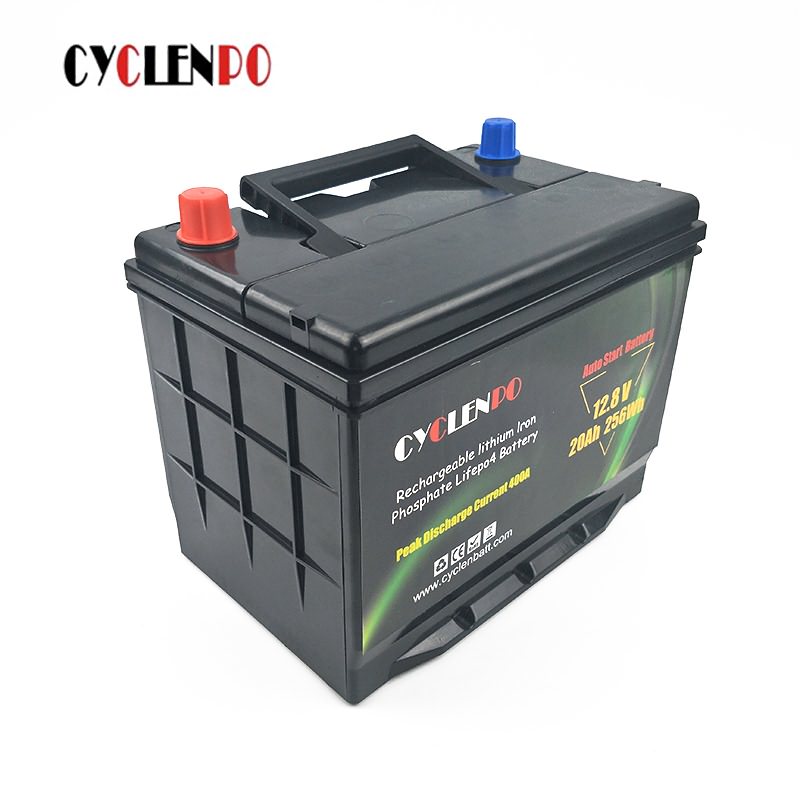

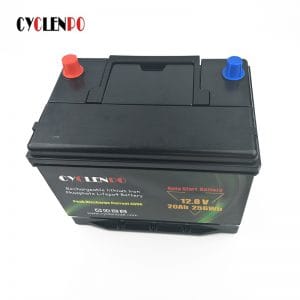

12v 20ah lithium ion battery
  • 12v 20ah lithium ion battery
  • 12v 20ah lithium ion battery
  • 12v 20ah lithium ion battery
  • 12v 20ah lithium ion battery

deep cycle 12v 20ah lithium ion battery


Product Specification:

  • Cycle life:

    ≥2000times

  • Warranty:

    1 years

  • Certificate:

    CE/RoHS/UN38.3/MSDS

  • Color:

    black or optional

  • Weight:

    About 8.5kg

  • Payment:

    Credit Card.Paypal.TT.Escrow.Western Union

  • size:

    L260+w170+h230mm

Inquiry Now

deep cycle 12v 20ah lithium ion battery

Normal performance
NO Item General Parameter Remark
1 Model 18650 3.2Ⅴ20Ah Single
2 Casing material for single cell Nickel plated steel
3 Standard capacity(0.2C5A) 20Ah
4 Rated voltage 12.8V 3.20V(Work voltage:3.20V)
5 Max.Charge voltage 14.6V 3.65V(Single Ave. charge Voltage)
6 Cut-off voltage 10V 2.50V(Single Ave. Discharge Voltage)
8 Standard charge current 10A 0.5C
9 charging Time About 3h
10 Max Continuous discharge current 200A 10C
11 Peak discharge current 600A 1C 10seconds
12 Battery dimension L260*w170*h230mm
13 (Approx.)Total weight(Approx.) About 8.5kg
14 (Max, at 1000Hz.)Impedance(Max, at 1000Hz.) ≤ 20mΩ
15  (CC/CV)

Charge method (CC/CV)

Standard 0℃~45℃
discharge -20℃~45℃
storage -20℃~45℃

12v 20ah lithium ion battery 12v 20ah lithium ion battery lifepo4 battery

one:Professional

We are experienced and professional on various types of lifepo4 battery ,lithium battery ,and kinds of Lithium polymer battery for nearly 20 years

lifepo4 battery

TWO:The excellent battery production capacity battery in china

We equipped the most advanced production machine and modern factory with total 40000 suqare metres , and total 2500 employee. The daily production capacity have over 200000pcs lion cylindrical batter and 200000pcs li-polymer battery.

18650 rechargeable battery

THREE:Quality First

We have strict production management and quality inspection.we always persist "Quality is our soul of enterprise, service paramount" as enterprise purpose

lithium ion battery manufacturers

FOUR :The Excellent Excutive Team

we have established professional customer service center that can support 7*24 hours service for any request or complain from the clients .Our services include R&D pre-support and product usage tracks after sales , and maintain the long-term partnership with clients.

12v rechargeable battery
