12V Lithium Ion Battery For Solar, More Than 3000 Cycle Times - Cyclen Battery

lifepo4 battery 12v 200ah
  • lifepo4 battery 12v 200ah
  • lifepo4 battery 12v 200ah

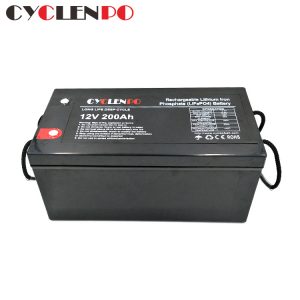

Lifepo4 200Ah 12V Lithium Ion Battery For Solar And Power


Product Specification:

  • Cycle life:

    ≥3000times

  • Warranty:

    3 years

  • Certificate:

    CE/RoHS/UN38.3/MSDS

  • Color:

    black or optional

  • Weight:

    about 30kg

  • Payment:

    Credit Card.Paypal.TT.Escrow.Western Union

  • size:

    495±1*268±1*219±1mm or customized

  • delivery:

    3-7days

Inquiry Now

Lifepo4 200Ah 12V Lithium Ion Battery For Solar And Power



Normal performance
NO
Item
General Parameter
Remark
1
Model
LFP 3.2Ⅴ25Ah
Single
2
Casing material for single cell
Nickel plated steel
3
Standard capacity(0.2C5A)
200Ah
4
Rated voltage
12.8V
3.20V(Work voltage:3.20V)
5
Max.Charge voltage
14.6V
3.65V(Single Ave. charge Voltage)
6
Cut-off voltage
10V
2.50V(Single Ave. Discharge Voltage)
8
Standard charge current
30A
0.2C
9
Charging Time
About 5h
10
Max Continuous discharge current
175A
1.17C
11
Peak discharge current
320A
2.1C10seconds
12
Battery dimension
525±1*270±1*220±1mm
13
(Approx.)Total weight(Approx.)
About 30kg
14
(Max, at 1000Hz.)Impedance(Max, at 1000Hz.)
≤ 20mΩ
15

 (CC/CV)

Charge method (CC/CV)

Standard
0℃~45℃
discharge
-20℃~45℃
storage
-20℃~45℃



lifepo4 12V Lithium Ion Battery For Solar



lifepo4 battery for sale

Features of our lifepo4 battery pack

  • More than 3000 times cycle life.
  • High discharge rate.Max discharge current 175A,up to 320A.
  • Can be connected in series and parallel
  • Maintenance free
  • Have passed different tests.No explosion,no smoke,no leakage.
  • Bluetooth function can be added to read battery status
  • 3 years manufacturer's warranty.
BMS Overall Protection
  • Over Current and Over Voltage
  • Over Charge and Over Discharge
  • Thermal Protection
  • Over Load
Wide Range of Application

Widely used in RV, camping car, marine,boat,golf carts,sightseeing cars,solar backup,solar pv light, industrial equipment, and other deep cycle replacement.

Lifepo4 200Ah 12V for sale

Performance Characteristic

lithium iron phosphate battery suppliers

china lithium ion battery manufacturerslifepo4 battery factory12v lifepo4 battery supplier

Packing and Delivery

china 12V Lithium Ion Battery For Solar

portable solar power station 12v

1.OEM&ODM manufacturer with various design and one-stop battery solution.

2.Reliable quality; Factory direct price; Complete production lines.

3.Timely and professional pre-sales service and after-sales service.

4.100% test before shipment; Solid package; Fast delivery and stable shipment.

 →Learn More About US

portable solar power station 12v

portable solar power station 12v

1.Where can I get the price of 12v lithium ion battery for solar ?

Welcome to contact the Online Services.  If it's not our working time,

please click "Send Inquiry" above or "Leave a Comment" below,

We will offer you the best quote in 24 hours after we get the product specifications

such as voltage capacity application etc.

2.How can you guarantee your quality?

Normally we will send you a sample to confirm everything first.

We will make the big order exactly the same as you request.

3.What about the lead time for mass production?

It depends on your order quantity.Normally 1-2days if we have sample in stock,

5-7days for newly produced samples.10-20 day for big order.

4.What shipping method can I choose? How about the shipping time?

By Express (3-7 working days), suitable for urgent time or small quantity.

By Sea (15-30 days), it suitable for mass production.

By Air (4-7 days), from airport to airport.
