36 Volt Lithium Marine Battery, 150Ah Boat Battery, LiFePO4 Battery 36V

deep cycle marine battery 36v
  • deep cycle marine battery 36v
  • 36v 150ah battery pack for marine boat yacht
  • 36 volt lifepo4 battery 150 amp
  • 36v lithium trolling motor battery

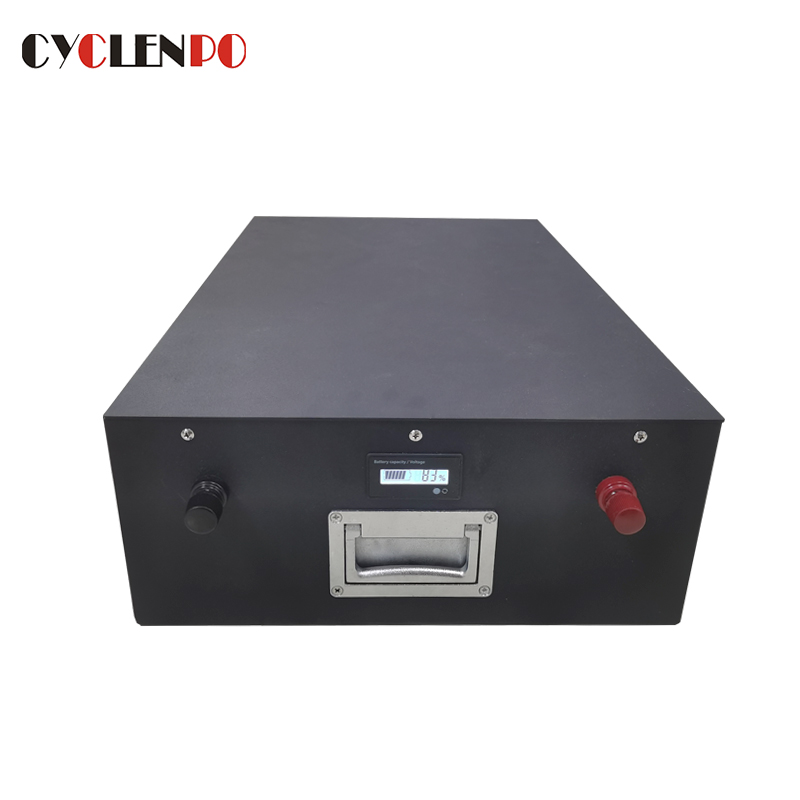

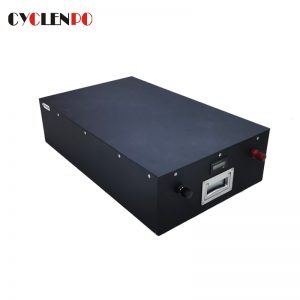

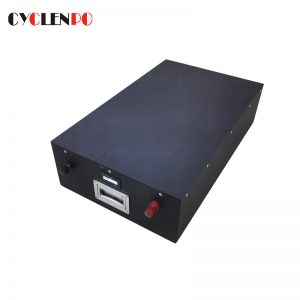

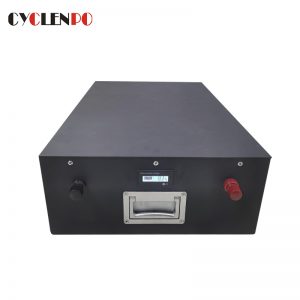

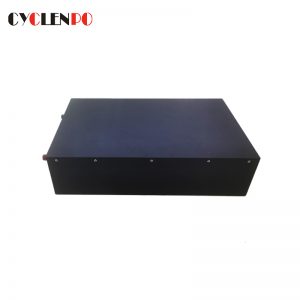

LiFePO4 150Ah 36 Volt Lithium Marine Battery Pack With BMS


Product Specification:

  • Cycle Life:

    3000+

  • Dimension:

    620*380*160mm

  • Weight:

    About 51kg

  • Max continuous discharge current:

    100A

  • Protection:

    Yes With BMS

  • Payment:

    TT. Credit Card. Paypal.Western Union

Inquiry Now

LiFePO4 150Ah 36 Volt Lithium Marine Battery Pack With BMS

This 36 volt lithium marine battery 150ah adopt the latest lifepo4 material and bms technology. Compared with traditional lead acid battery, it 's smaller and lighter, yet more powerful and durable. LCD screen design allows you to check battery capacity and voltage freely. For who are looking for drop in lead acid replacement for their trolling motors, boats, kayak, this model can be a perfect choice.Other bettery specs can be tailored or you can check other 36v lifepo4 battery models. If you can't find what you want, please contact us and we will work out solution for you.
NO
Item
General Parameter
Remark
1
Model
IFR 3.2V 78Ah
Single
2
Casing material for single cell
Nickel plated steel
3
Standard capacity(0.2C5A)
150Ah
4
Rated voltage
38.4V
(Work voltage:38.4V)
5
Max.Charge voltage
43.2V
(Single Ave. charge Voltage 3.6V)
6
Cut-off voltage
30V
(Single Ave. Discharge Voltage 2.5V)
8
Standard charge current
30A
0.2C
9
charging Time
About 5h
10
Max Continuous discharge current
100A
1.0C
11
Peak discharge current
200A
1.33C 10seconds
12
Battery dimension
620±1*380±1*160±1mm
13
(Approx.)Total weight(Approx.)
About 51kg
14
(Max, at 1000Hz.)Impedance(Max, at 1000Hz.)
≤ 45mΩ
15

 (CC/CV)

Charge method (CC/CV)

Standard
0℃~45℃
discharge
-20℃~45℃
storage
-20℃~45℃

lifepo4 36v 150ah battery with LCD36 volt 150ah lithium ion battery pack

*Battery specifications can be customized as you require

Features Of 36 Volt Lithium Marine Battery

1. Ideal drop-in replacement for lead-acid batteries
2. Longer cycle life. More than 3000 cycle times
3. Good high-temperature resistance.
4. No memory effect.
5. Lighter weight compared with same size lead acid battery
6. IP65 waterproof ratings. Suitable for marine use.

Bms built in 36v 150ah lifepo4 battery

1.Over charged protection
2.Over discharged protection
3.Cell balancing
4.Over load protection
5.Over current protection

Package and Delivery Sample

12v 120ah supplier

LiFePO4 Battery Modules Cyclen Supply

Model Rated Voltage Nominal Capacity Dimension Weight
CY-LFP-1250

12.8V



50Ah 195*165*175mm 7kg
CY-LFP-12100 100Ah 328*171*215mm 12kg
CY-LFP-12120 120Ah 328*171*215mm 15kg
CY-LFP-12150 150Ah 405*175*240mm 20kg
CY-LFP-12200 200Ah 520*238*218mm 22.5kg
CY-LFP-12240 240Ah 495*268*219mm 27kg
CY-LFP-12250 250Ah 495*268*219mm 28kg
CY-LFP-12300 300Ah 520*267*218 mm 33kg
CY-LFP-2450

25.6V



50Ah 328*171*215mm 13kg
CY-LFP-24100 100Ah 520*267*218mm 23kg
CY-LFP-24120 120Ah 520*267*218mm 30kg
CY-LFP-24150 150Ah 495*160*295mm 35kg
CY-LFP-24200 200Ah 410*370*200mm 43kg
CY-LFP-3650 38.4V

50Ah 483*170*240mm 22kg
CY-LFP-36100 100Ah 520*267*218 mm  33kg
CY-LFP-36150 150Ah 620*380*160mm 51kg



portable solar power station 12v

   Cyclen is a chinese lifepo4 battery manufacturer specialized on producing high performance lithium lifepo4

   battery packs and custom battery solutions.We have exported our battery packs worldwide for years.If you

   are looking for lead acid/gel/agm replacement battery, we can be your reliable supplier.

  • OEM&ODM manufacturer with various design and one-stop battery solution.
  • Reliable quality; Factory direct price; Complete production lines.
  • Timely and professional pre-sales service and after-sales service. 100% test before shipment;
  • Solid package; Fast delivery and stable shipment.

portable solar power station 12v

lifepo4 battery manufacturers

portable solar power station 12v

  • Where can I get the price of the 150ah 36 volt lithium marine battery?

         Battery price depends on your quantity and specifications. Welcome to contact the Online Services.

         If it's not our working time, please "Leave a Comment" below about your requirement.

         We will offer you the best quote in 24 hours after we get the product specifications  such as voltage

         capacity application etc.

  • What about the lead time for mass production?

         It depends on your order quantity.Normally 1-2days if we have sample in stock, 5-7days for newly

         produced samples. 10-20 days for big order.

  • What shipping method can I choose? How about the shipping time?

        Our sales will help you choose the most cost-effective shipping methods.

        By Express (3-10 working days), suitable for urgent time or small quantity.

        By Sea (15-30 days), it suitable for mass production.

        By Air (4-7 days), from airport to airport.

  • What is the package? Is that safe?

        We pack one battery in one carton box, and filled with EPE foam on the top and at the bottom.

        For heavier battery, we adopt wooden case.And our shipping agent has full experience in safe

        transportation. We will send you pictures of the packaging before battery shippment.

  • What's the warranty? How can I get support after purchasing batteries?

        Usually 2-3 years warranty (Depends on different battery model) .And we offer online support by email,

        skype, whatsapp or wechat etc. If you meet problems, we have our own engineers to provide technical

        guide.
