3U rack mount battery

3U rack mounted battery
  • 3U rack mounted battery
  • 3U rack mounted battery
  • 3U rack mounted battery

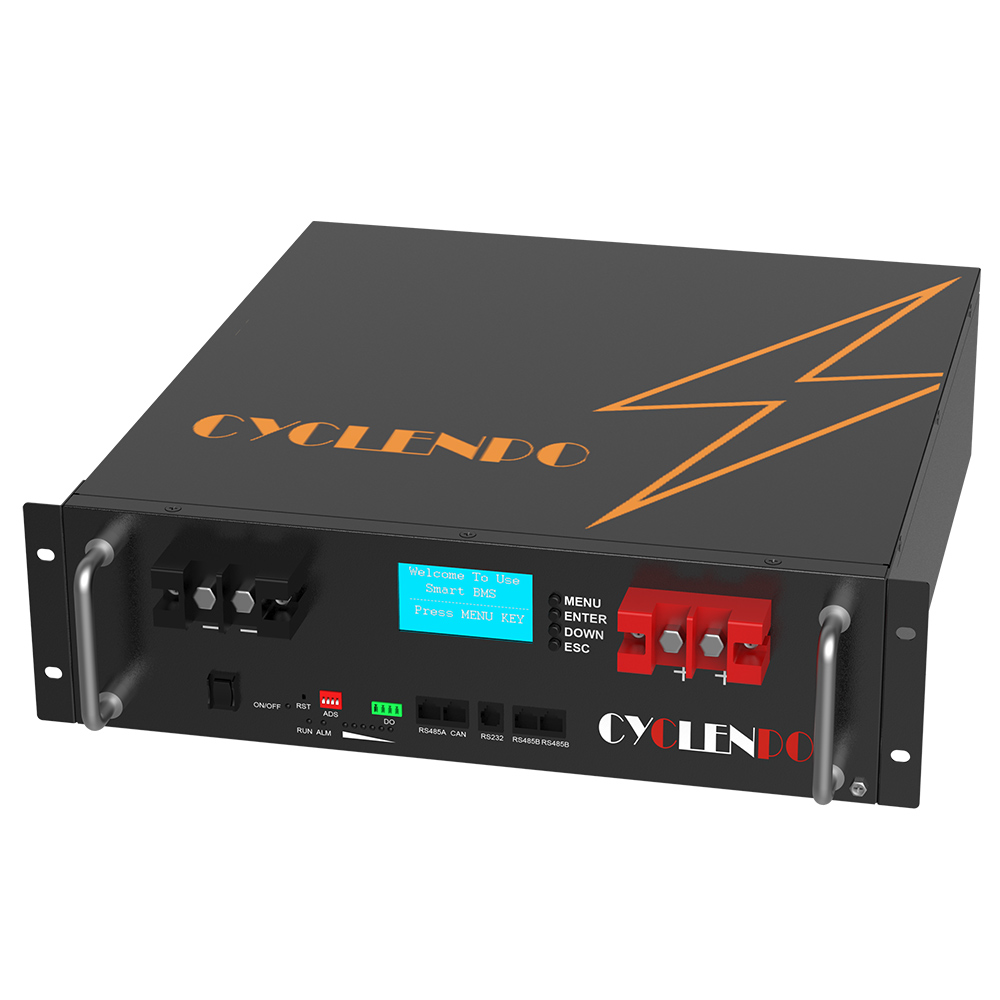

3U rack mounted battery

3U rack mount battery for solar energy storage solution,Telecom BTS(Base Station),residential and commercial use.


Product Specification:

  • Cycle life:

    ≥6000times

  • Certificate:

    CE/RoHS/UN38.3/MSDS

  • Color:

    black or optional

  • Weight:

    about 42kg

  • Payment:

    Credit Card.Paypal.TT.Escrow.Western Union

Inquiry Now

3U rack mounted battery

Item CY-FE48100-1535 CY-FE48100-1635
Cell Model LF105-3.2v/105Ah LF105-3.2v/105AAh
Combination Mode 1P15S 1P16S
Nominal Capacity(Ah) 100 100
Internal Impedance AC 1KHz <50 <50
Rated Volatge(V) 48 51.2
Charge Ending Voltage(V) 54.75 58.4
Discharge Ending Voltage(V) 37.5 40
Standard Charge Current(A)0.2C 20 20
Max Charge Current(A) 0.5C 50 50
Standard Discharge Current(A) 50 50
Max Discharge Current(A) 100 100
Operating Temperature °C (Charge) 0-45 0-45
Operating Temperature °C (Discharge) -10-55 -10-55
Delivery Voltage (V) 48-50 51-53.5
Shell Type Painted metal Painted metal
Weight about 55 57
Size(mm) L*W*H 535*437*155(3.5U) 535*437*155(3.5U)

3U rack mounted battery

3U rack mounted battery

3u rack mounted battery

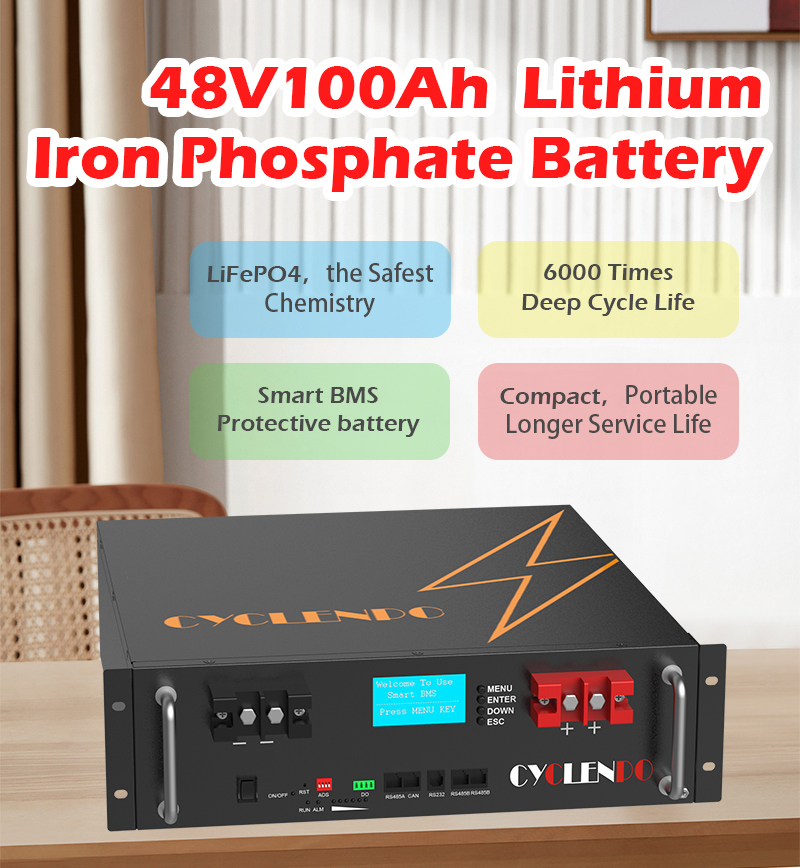

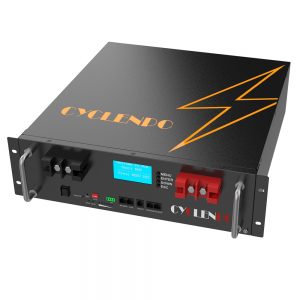

48V 100ah Lifepo4 Battery Pack

Features of 3U rack mounted battery

  • Maintenance free.Suitable for installation of communication cabinet.
  • Life span is more than 3500 cycles at 80% DOD

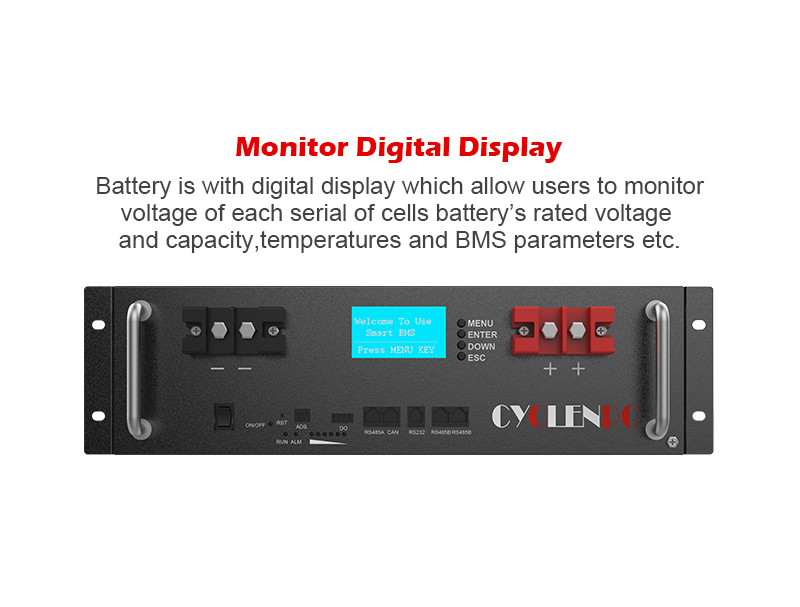

  • Bulit in BMS.Has multiple protection and communication functions to ensure the reliability of the battery pack and achieve remote monitoring real time date of batteries.
  • Wide temperature range and high reliability
  • Small internal resistance,superior performance
  • Multiple battery packs can be connected in parallel,suitable for high energy applications

Advantages of this 3U rack mounted battery

  • High energy cell. Advanced high capacity and long life span
  • Easy installation by simple module structure
  • Standard Module for various customer needs
  • Scalability. Easy to expand capacity.
  • Intelligent BMS management system. Super active/passive equalization manager.High resolution thermal management function
  • Compatibility. Compatible with various standard inverters

Application

Mainly used for off-grid solar system storage, telecommunication, BTS, central data center, General macro base station, New energy base etc.
48V 100ah Lifepo4 Battery Pack
48V 100ah Lifepo4 Battery Pack

portable solar power station 12v

1.OEM&ODM manufacturer with various design and one-stop battery solution.

2.Reliable quality; Factory direct price; Complete production lines.

3.Timely and professional pre-sales service and after-sales service.

4.100% test before shipment; Solid package; Fast delivery and stable shipment.

 →Learn More About US

portable solar power station 12v

48V 100ah Lifepo4 Battery Pack

portable solar power station 12v

1.Where can I get the price of the 3U rack mounted battery ?

   Welcome to contact the Online Services. If it's not our working time,

    please click "Send Inquiry" above or "Leave a Comment" below,

    We will offer you the best quote in 24 hours after we get the product specifications

    such as voltage capacity application etc.

2.How can you guarantee your quality?

   Normally we will send you a sample to confirm everything first.

   We will make the big order exactly the same as you request.

3.What about the lead time for mass production?

    It depends on your order quantity.Normally 1-2days if we have sample in stock,

    5-7days for newly produced samples.10-20 day for big order.

4.What shipping method can I choose? How about the shipping time?

    By Express (3-7 working days), suitable for urgent time or small quantity.

    By Sea (15-30 days), it suitable for mass production.

    By Air (4-7 days), from airport to airport.

Energy storage solution,off grid and on grid optimzed,48v 50ah/80ah/100ah/150ah/200ah
