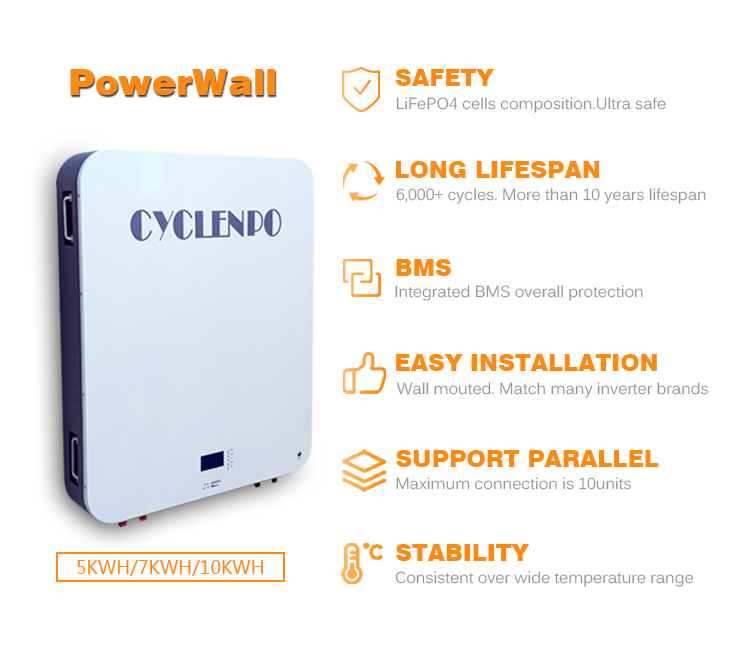

5KWH/7KWH/10KWH
100A
≥ 6000 times
LCD
10 Years
TT, Credit Card, Paypal, Western Union
This 48v solar battery series adopt prismatic lifepo4 cells and bms inside. Features long service life and superior safety.It can be connect in parallel to expand higher energy storage system. Perfect backup battery for areas where lack of electricity and have abundant sunlight.For other storage battery model, check here and leave us message for the wholesale price.
|
Item
|
General Parameter
|
Remark
|
|
Combination method
|
16S4P
|
|
|
Rated Capacity
|
200Ah
|
Standard discharge after Standard charge
|
|
Factory Voltage
|
51.5V-52.8V(40-60%)
|
Mean Operation Voltage
|
|
Discharge Cut-off Voltage
|
40-44V
|
|
|
Charging Voltage
|
58.4V
|
|
|
Internal Impedance
|
≤50mΩ
|
Internal resistance measured at AC 1KHZ after 50% charge
|
|
Standard charge current
|
20A
|
Charge time : Approx 6 h
|
|
Limiting charge current
|
20A
|
|
|
Standard discharge current
|
20A
|
|
|
Max Continuous Charge Current
|
100A
|
|
|
Max Continuous Discharge Current
|
100A
|
100A when 0ºC＞T≥-10ºC
50A when -10ºC＞T≥-20ºC |
|
Operation Temperature Range
|
Charge: 0~45℃
|
60±25%R.H.
Bare Cell |
|
Discharge: -20~55℃
|
||
|
Storage Temperature Range
|
-10~35℃
|
Less than 12 months
|
|
-10~45℃
|
Less than 3 months
|
|
|
-20~65℃
|
Less than 7 day
|
|
|
Dimensions
|
650*485*180 mm
|
|
|
Weight
|
100kg
|
Why Choose 48v Solar Battery
(1) Making full use of clean energy.
The output power of solar energy and wind energy can be effectively smoothed. The impact to the power grid and users, which is consulted by intermittency of new energy can be effectively overcome.
(2) Providing uninterrupted power
Can satisfy the requirement of users under the extreme environment, such like the power failure caused by earthquake and flood.
(3) Saving electricity for users by peak-shift.
Under the price of peak valley, if the power consumption is big in the rash hour, this system can help to save expenditure by storing electricity during the electricity troughs, and using in the peak time.
Working Mode of Powerwall System
(1) PV Solar Priority Mode
In this mode, the power supply to the load is fed by the solar panel input. The amount of electricity generated by the solar cell is stored in the powerwall in addition to the user load. When the amount of electricity generated by solar does not meet the user load, the amount of electricity stored in the battery bank is replenished to the load.
(2) AC Priority Mode
In this mode, the power supply of the load is provided by the mains input. Solar power only charges the battery pack; When the battery power is seriously insufficient, the AC mains will start to charge the battery.When the AC mains is powered off or abnormal, the system will switch to the battery to supply power to the load.
48V Solar Battery Series
|
SERIES
|
Model
|
Weight
|
Energy
|
Dimension
|
Discharge Current (max)
|
|
15S
|
48V 100AH
|
≈ 56KG
|
4.8KWh
|
485*650*180mm
|
100A
|
|
48V 150AH
|
≈ 75KG
|
7.2KWh
|
|||
|
48V 200AH
|
≈ 95KG
|
9.6KWh
|
|||
|
16S
|
51.2V 100AH
|
≈ 58KG
|
5.12KWh
|
||
|
51.2V 150AH
|
≈ 78KG
|
7.68KWh
|
|||
|
51.2V 200AH
|
≈ 100KG
|
10.24KWh
|
1.OEM&ODM manufacturer with various design and one-stop battery solution.
2.Reliable quality; Factory direct price; Complete production lines.
3.Timely and professional pre-sales service and after-sales service.
4.100% test before shipment; Solid package; Fast delivery and stable shipment.
Battery price depends on your quantity and specifications. Welcome to contact the Online Services.
If it's not our working time, please "Leave a Comment" below about your requirement.
We will offer you the best quote in 24 hours after we get the product specifications such as voltage
capacity application etc.
It depends on your order quantity.Normally 1-2days if we have sample in stock, 5-7days for newly
produced samples. 10-20 days for big order.
Our sales will help you choose the most cost-effective shipping methods.
By Express (3-10 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
We pack one battery in one carton box, and filled with EPE foam on the top and at the bottom.
For heavier battery, we adopt wooden case.And our shipping agent has full experience in safe
transportation. We will send you pictures of the packaging before battery shippment.
Usually 2-3 years warranty (Depends on different battery model) .And we offer online support by email,
skype, whatsapp or wechat etc. If you meet problems, we have our own engineers to provide technical
guide.
