51.2v 200ah rack mount battery

200ah rack battery
  • 200ah rack battery
  • 51.2v 200ah battery
  • 200ah rack mounted battery
  • 10kw rack mount battery
  • rack battery 51.2v

51.2v 200ah rack mount battery

51.2v 200ah rack mount battery


Product Specification:

  • Cycle life:

    ≥6000times

  • Certificate:

    CE/RoHS/UN38.3/MSDS

  • Color:

    black or optional

  • Weight:

    about 42kg

  • Payment:

    Credit Card.Paypal.TT.Escrow.Western Union

Inquiry Now

10kw rack mount battery

Product Description

This 48v rack mount battery  is mainly for energy backup and energy storage. Rack mounted and modular design make it easy to install and save space. It features high stability, high reliability, high practicability, and is a highly cost-effective power supply.

Rated voltage
51.2V
Battery working voltage
40~58.4V
Rated capacity
100Ah
Total Energy
5.12KWh
SOC range
20%-100%
Charge /discharge capacity
efficiency
≥96%
Max.Charge current
50
Peak discharge current
200
Max Continuous discharge current
100
Battery cycle life
More than 6000 cycle at 1C
Battery weight
65k
Battery construction
16S2P
Waterproof Rate
IP55

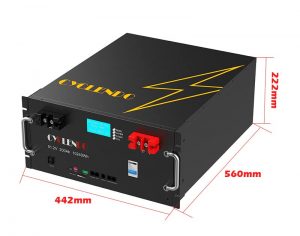

Product Details

51.2v 200ah rack battery200ah rack mount battery

51.2v rack battery

{alt_attr_replace}

Features of 10kw rack module battery

1. Long cycle life. Adopt grade a lfp prismatic cells, more than 10 years service life.

2. Support RS485 RS232 communication port for battery management.

3. Smart bms provides over charge/discharge, over load/current, high temperature protections and cell balancing.

4. Lower internal resistence, superior charge and discharge performance.

5. Module design. Support multiple batteries in parallel, increases the output power and extends the backup time of the system.

6. Wide operating temperature range. High reliability

Applications of 48v rack mount battery

1. Telecom station

2. Hotel/office/data center energy backup

3. Solar /wind energy storage

4. Emergency power system

5. Outdoor/Indoor macro station

High Performance 48V 100Ah LiFePO4 Lithium Battery Pack for Telecom and Power Backup

Lifepo4 VS Lead Acid/Gel/AGM?

Item LiFePO4 Lead Acid/Gel/AGM
Weight 50% lighter Heavier
Size Compact Bigger
Cycle life 3000 -5000 times 300- 500 times
DOD 80%-100% 50%
Charge rate Fast (0.3C-1C) Slow(0.2C).
Lower temperature performance 70% discharge capacity 45% discharge capacity
Installation No restriction Invert position not allowed
Environmental impact Green no toxic material Heavy metal
Our LiFePO4 battery series can be Plug In replacement of SLA batteries.

Our Services

Besides the standard 12V 24V 36V 48V modules for you to choose, Cyclen can customize other battery specifications as you require.

1. Cell, dimension, shape, case (abs/Iron)

2. Terminal (M8, M6, Anderson, Stud)

3. BMS: Discharge and charge performance etc

4. LCD screen / bluetooth app / Can bus

5. Logo, package etc.

Why Choose US?

1. Factory direct price.

2. Puntual lead time and delivery

3. Full series lifepo4 products and small trial order is available

4. Strict quality control

5. Professional sale and after-sale services

Factory Production

We conduct strict production precedures to make sure of the safety and superior performance of each lifepo4 battery, guaranteeing only defect-free products are delivered.

High Performance 48V 100Ah LiFePO4 Lithium Battery Pack for Telecom and Power Backup

Battery Test.

Our battery packs and cells have passed different test: short circuit, drop test, over charge test and extrusion test. No explosion. No fire, no smoke, no leak.

High Performance 48V 100Ah LiFePO4 Lithium Battery Pack for Telecom and Power Backup

Our Certifications

We obtained a list of certifications including ISO9001, SGS,

Productions carry UN38.3, CE, ROHS, FCC and series of MSDS certifications.

High Performance 48V 100Ah LiFePO4 Lithium Battery Pack for Telecom and Power Backup

With Our Customers

We have exported our battery packs worldwide for years, and have gained customers' recognization.

High Performance 48V 100Ah LiFePO4 Lithium Battery Pack for Telecom and Power Backup

High Performance 48V 100Ah LiFePO4 Lithium Battery Pack for Telecom and Power Backup

FAQ

1. Where can I get the price of 48v rack mount battery  ?

The price depends on your quantities and your requirements.If you are interested in our products, Please click “Inquire Now” above to get our product catalog and price list. We will offer you the best quote in 24 hours after we get the product specifications such as voltage capacity application etc.

2. What are the payment methods?

We support TT, paypal, credit card.

3. What's the lead time ?

It depends on your order quantity.Normally 1-2 days if we have samples in stock, 5-10 days for newly produced samples. 15-20 days for big order.

4. What shipping methods can I choose, how about the shipping time?

Our sales will help you choose the most cost-effective shipping methods.

Express (3-10 working days), suitable for urgent time or small quantity.

Sea (15-30 days), it suitable for mass production.

Air (4-7 days), from airport to airport.

5. What is the package? Is that safe?

We pack the battery in safe and standard way.One battery in one carton box, and filled with EPE foam on the top and at the bottom. For heavier battery packs, we adopt wooden case. We will send you the battery photo before shipping and the shipping agent we work with are reliable and professional.

6. What's the warranty? How can I get support after I purchase 48v rack mount battery ?

Different warranty for different models. Usually 3-5 years for higher capacity packs.

1-2 years for smaller battery models. During warranty time, we can send you new ones if your battery fail to work due to its own quality problem. You can contact us about any battery problems via email, skype, whatsapp and wechat. Our sales and engineers will help you work it out.
