Prismatic Cells
CYP-48100s
320*562*458mm
73kg
5kwh
IP54
https://www.youtube.com/channel/UC4dki7ymjRB2jv_U0hJk04A

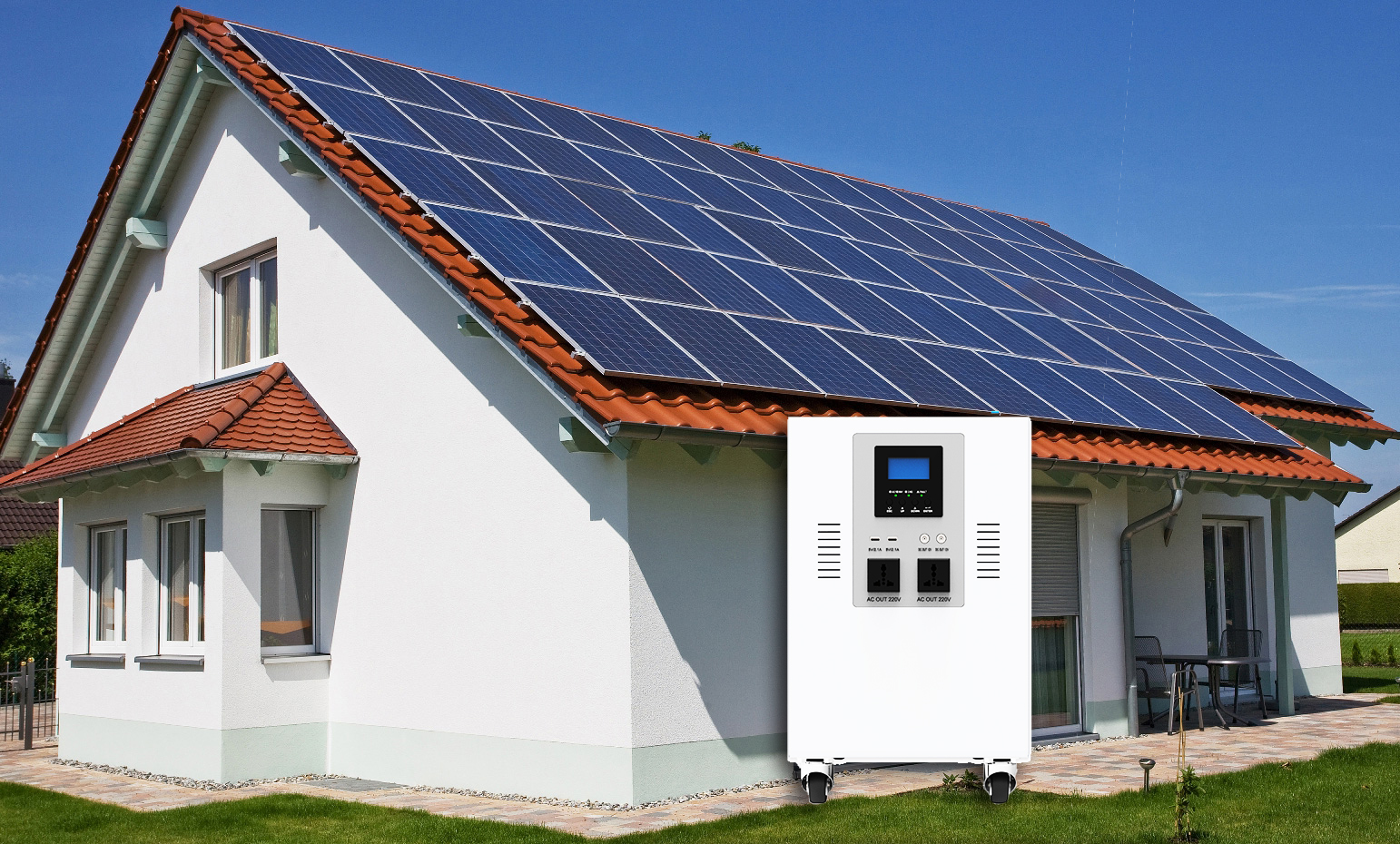

Lithium home battery,also called solar energy system,

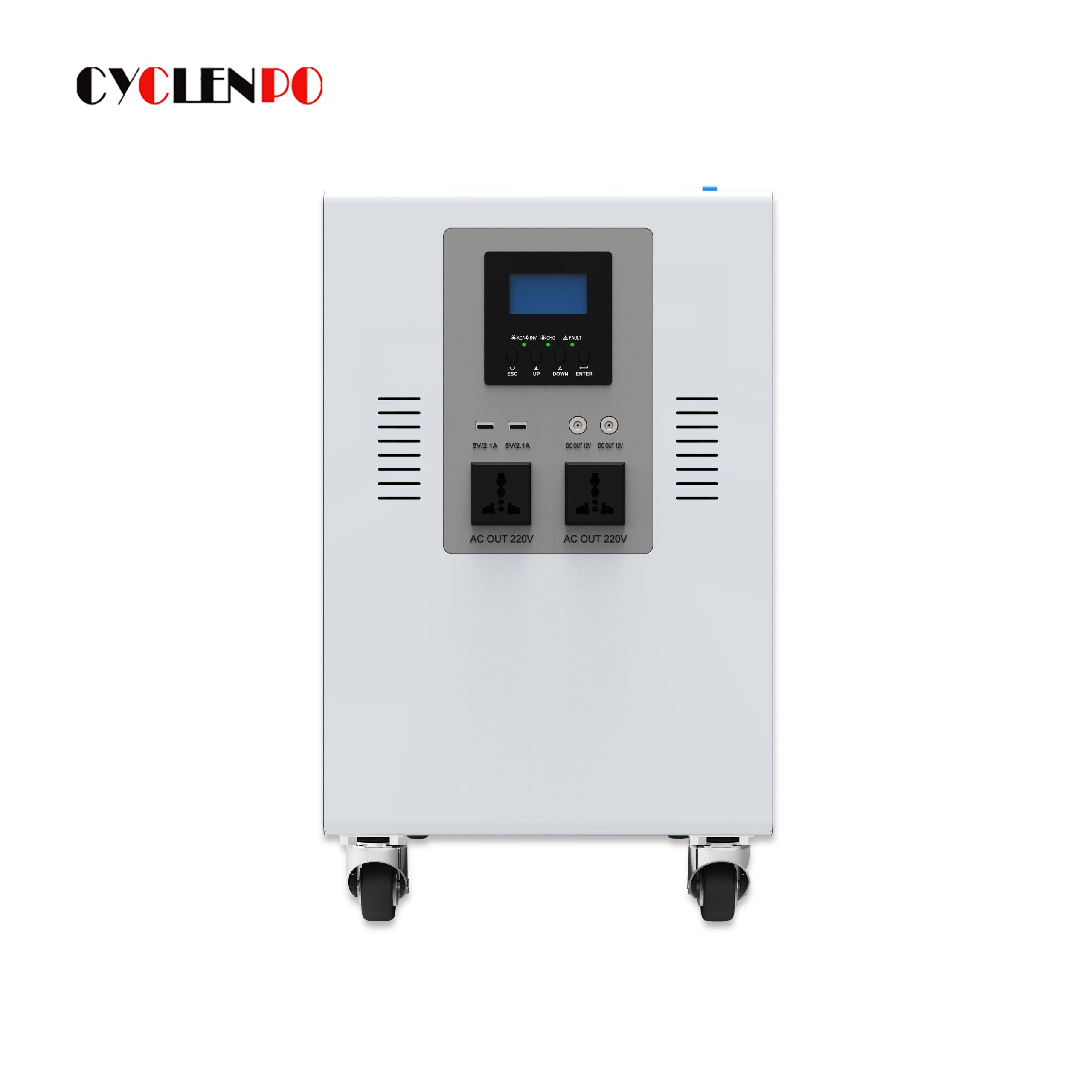

Solar Power Station 48v is a high performing storage battery developed to provide house energy storage.

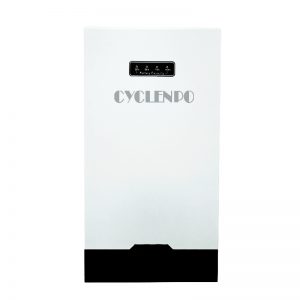

Check other models of our storage batteries.
Product Details:

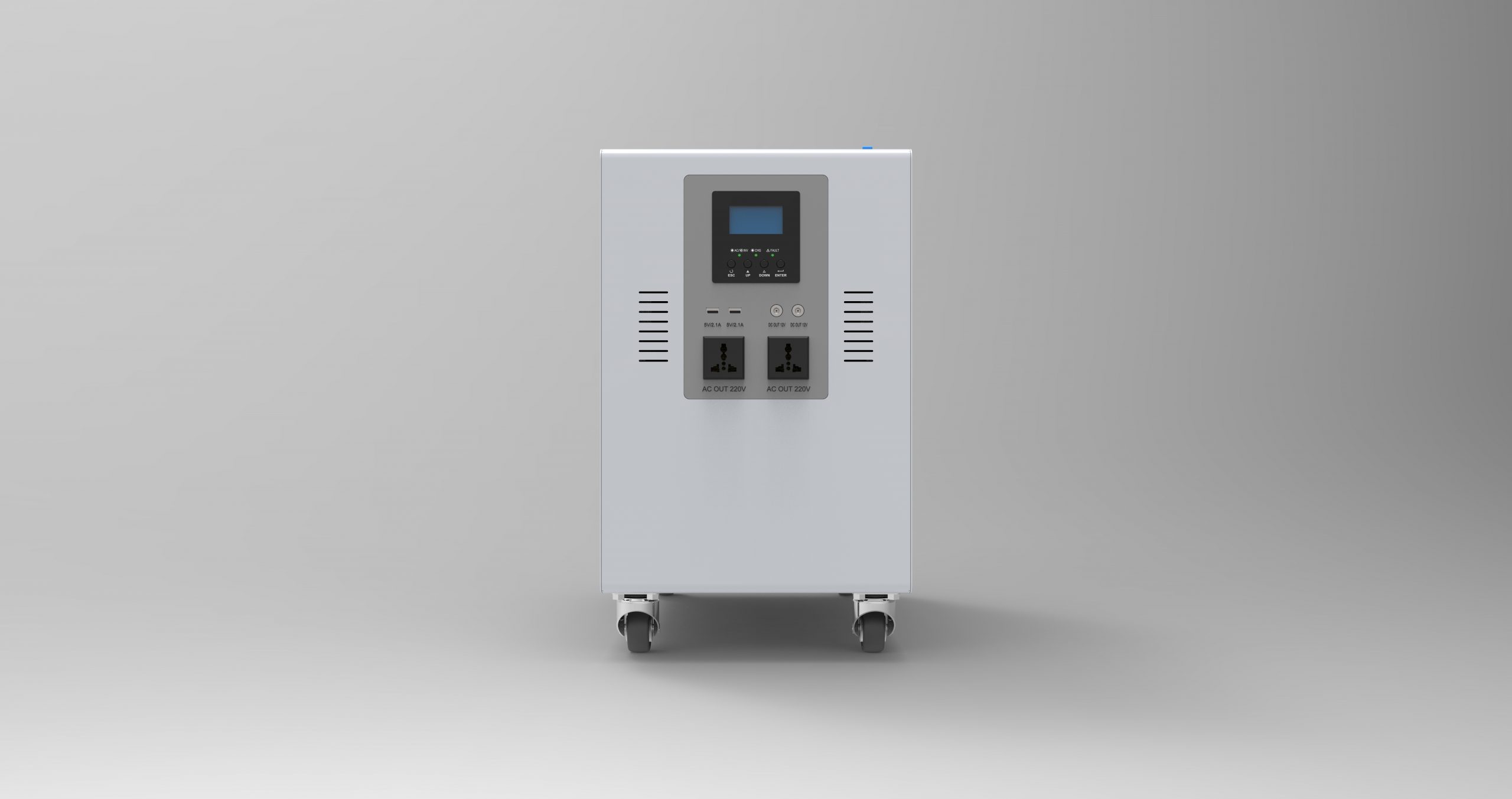

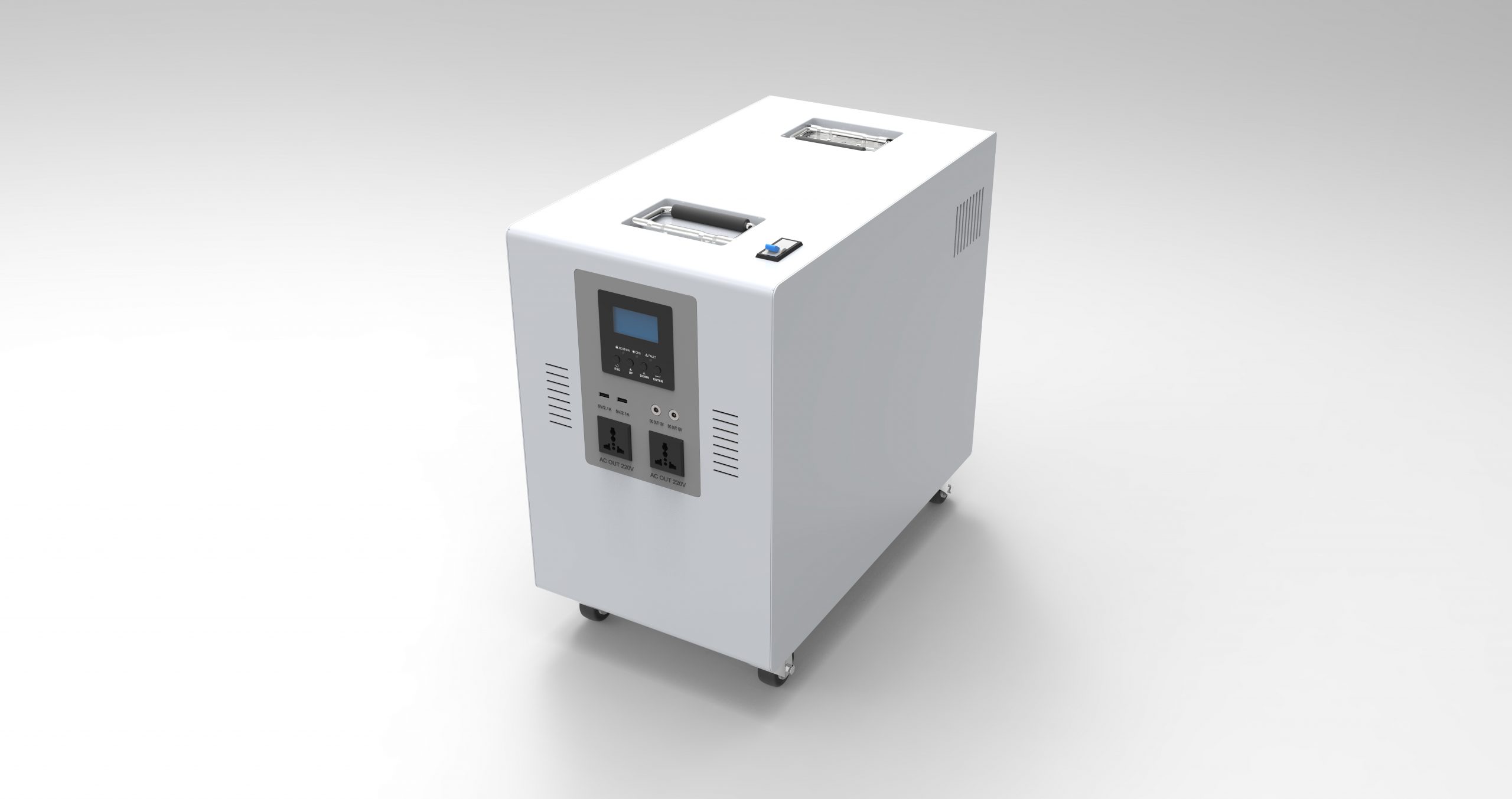

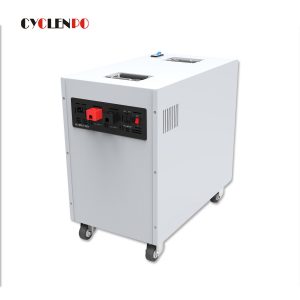

All in one design: This home backup power supply has built with an inverter and mppt controller.Has multiple outputs and AC/PV inputs
Sample Available！
|
|
Item | General Parameter |
|
1
|
Battery type
|
Solar Power Station 48v 100ah
|
|
2
|
Casing material for single cell
|
Aluminum shell
|
|
3
|
Standard capacity（0.2CA）
|
100Ah
|
|
4
|
Rated voltage
|
51.2V
|
|
5
|
Max.Charge voltage
|
58.4V
|
|
6
|
Discharge Cut-off voltage
|
40V
|
|
7
|
Standard charge current
|
100A
|
|
8
|
Charging Time
|
About 1 h
|
|
9
|
Continuous discharge current
|
100A
|
|
10
|
Peak discharge current
|
200A
|
|
11
|
Battery dimension
|
≤320*562*458mm
|
|
12
|
Total weight（Approx.)
|
73Kg
|
|
13
|
Working temperature (CC/CV)
|
Charging temperature 0℃～50℃
Discharge temperature -20℃～60℃
Storage temperature 0℃～45℃ |
|
14
|
IP Grade
|
IP54
|
|
15
|
Inverter
|
3000w
|
|
16
|
Inverter input
|
170~280 VAC
|
|
17
|
Inverter output
|
230V AC±5%
|
|
18
|
Solar panel input
|
Max Solar panel power 2400w
Solar charging current 50A
|
Solar Power Station 48v 100ah Quick Details
Warranty: 10years, 10 Years Free installation service: No
Benefits of 48v 100ah Solar Power Station
(1) Making full use of clean energy.
The output power of solar energy and wind energy can be effectively smoothed.
The impact to the power grid and users, which is consulted by intermittency of new energy can be effectively overcome.
(2) Providing uninterrupted power
Can satisfy the requirement of users under the extreme environment,
such like the power failure caused by earthquake and flood.
(3) Saving electricity for users by peak-shift.
Under the price of peak valley, if the power consumption is big in the rash hour,
this system can help to save expenditure by storing electricity during the electricity troughs, and using in the peak time.
1.OEM&ODM manufacturer with various design and one-stop battery solution.
2.Reliable quality; Factory direct price; Complete production lines.
3.Timely and professional pre-sales service and after-sales service.
4.100% test before shipment; Solid package; Fast delivery and stable shipment.
1.Where can I get the price of 48v solar energy system?
Welcome to contact the Online Services. If it's not our working time,
please click "Send Inquiry" above or "Leave a Comment" below,
We will offer you the best quote in 24 hours after we get the product specifications
such as voltage capacity application etc.
2.How can you guarantee your quality?
Normally we will send you a sample to confirm everything first.
We will make the big order exactly the same as you request.
3.What about the lead time for mass production?
It depends on your order quantity.Normally 1-2days if we have sample in stock,
5-7days for newly produced samples.10-20 day for big order.
